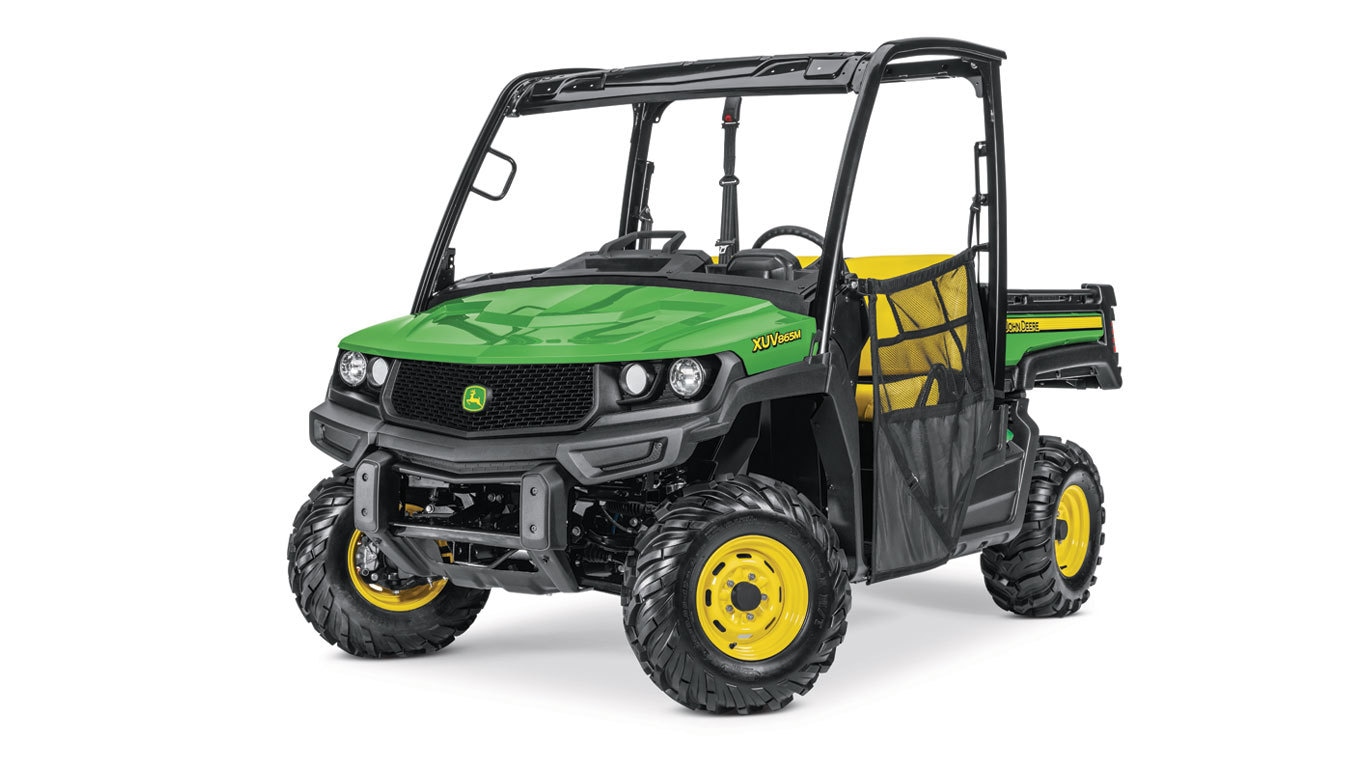

XUV865MCrossover Utility Vehicle
- Three person cockpit
- Power steering for maneuverability
- Over 15 gallons (56 L) of enclosed storage
- Powerful diesel engine system
Features
Expand All
Collapse All
Heating, ventilation, and air conditioning (HVAC) dash shown
Operator station
812-cc (49.6-cu in.) gasoline engine
XUV front suspension detail
XUV rear suspension detail
Variable-speed drive
Side view of CVT intake and clutch on closure (XUV855 shown)
Front differential rocker switch
Rear end shot of sway bar, suspension components, and CV shafts (XUV825M S4)
Deluxe cargo box
Tailgate handle
Tailgate lowered to 150 degrees
Integrated handle for manual cargo-box tilt
Integrated tie-down point in cargo-box bed
Additional tie-down points (TH 6X4 shown)
Deluxe cargo box converted to flat bed (XUV825 shown)
Brake and taillight with protector
Bedmat—protects the steel floor from dents
Cargo box power lift
Roof harness electrical port
Main vehicle harness – winch connection
Electric power-assist steering system
EPAS interface diagram
Roomy and quiet operator station
Heating, ventilation, and air conditioning (HVAC) dash shown
Operator station
Whether it is a completely open operator station or a factory installed cab, the interior has been redesigned with comfort and ergonomics in mind.
- Gear shift control and differential shifter to the dash
 |
| HVAC dash shown (M trim) |
- Tilt steering
 |
 |
 |
| Tilt steering | Tilt steering (up position) | Tilt steering (down position) |
- Bench seat with diver adjustment
 |
| Bench seat adjustment |
- Three-wide seating
 |
| Seating |
Powerful gas engine delivers superb starting, idling, and throttle response
812-cc (49.6-cu in.) gasoline engine
The machine is powered by an 812-cc (49.6-cu in.), 3-cylinder, dual overhead cams, liquid-cooled, four-cycle gasoline engine. It produces 6.5 kgm (47 lb-ft) of torque at 3200 rpm. The advanced electronic controls and fuel-injection system deliver superb starting, idling, and throttle response during operation.
The engine offers the following performance and reliability features:
-
38.8 kW (52 hp*) at 6000 rpm
-
71-km/h (44-mph) top speed
-
Electronic fuel injection for superb performance, altitude adjustment, and cold-weather starting (tested to -28.9°C [-20°F])
-
Electronic ignition is continuously variable for optimum engine power and provides fast, reliable starts
-
Overhead valve design provides greater efficiency and fuel economy
-
Full-pressure lubrication system
-
Spin-on oil filter with drain bracket and oil drain plug enable easy servicing
-
Dry, replaceable, single-element air cleaner with remote intake
-
See-through coolant recovery tank permits the operator to check the coolant level without having to remove the radiator cap
-
Open radiator compartment for air flow
-
-
Standard high-capacity alternator - 85 amps for maximum accessory capability
* The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only. The actual operating horsepower will be less.
Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
XUV front suspension detail
To complement the most capable frame available in a high-performance utility vehicle, the XUV is equipped with four-wheel independent suspension.
A dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics.
The entire suspension system has been optimized to handle no cargo to maximum cargo without compromising ride quality or vehicle stability.
DUAL A-ARM FRONT SUSPENSION FEATURES INCLUDE:
-
203.2 mm (8 in.) of travel provides ample compression and wheel extension, which keep all four wheels on the ground for superior traction and vehicle control
-
17.5-mm (0.6875-in.) solid anti-roll bar with fully rubber isolated connecting links and pivots for minimal vehicle body roll and quiet operation
-
Heavy-duty nodular cast-iron knuckles to support the strut, constant-velocity (CV) shaft, and wheel
-
Maintenance-free rubber torsional A-arm pivots for long life and quiet operation
-
CV shaft protection from sticks that may puncture the rubber boot
-
Front sway bear for balanced handling
XUV rear suspension detail
Dual A-arm independent rear suspension features include:
-
Unequal length, dual A-arm construction for superior wheel control and travel
-
228.6 mm (9 in.) of total travel provides ample compression and wheel extension, which keep all four wheels on the ground for superior traction, excellent ride quality, and vehicle control
-
Coil over shocks absorb the most demanding terrain
-
A-arms made from square/rectangular tubing reduce weight while remaining rigid
-
Heavy-duty nodular cast-iron uprights support wheel loads with a double row of ball bearings
-
CV driveshaft protection from sticks that may puncture the rubber boot
Superior terrain capability
The Gator™ XUV Crossover Series Utility Vehicle has a precision-engineered drivetrain system that fully utilizes engine power, optimizing acceleration, hauling, towing, and hill-climbing capabilities. Power is transmitted from the engine through a continuously variable clutch system to the transaxle.
Key elements of the drive system include:
VARIABLE-SPEED DRIVE
Variable-speed drive
The variable-speed drive consists of two clutches and a drive belt:
- Drive clutch is attached to the engine.
- Driven clutch is attached to the transaxle.
Features include:
- The engine braking system utilizes a tight belt for operation, requiring an idler sleeve on the primary clutch for neutral. The secondary clutch is a new build on shaft design that utilizes a cam to tune the acceleration and deceleration of the vehicle. The clutch will stay engaged, providing deceleration until approximately 5 km/h (3 mph).
- The Continuously Variable Transmission (CVT™) air intake draws in 50 percent more air vs. previous designs to reduce heat and the amount of water ingestion into the CVT system. The system will reduce belt slipping and improve durability.
- A low- and high-speed forward gear offering:
- Low range is 0 km/h to 43 km/h (0 mph to 27 mph), 825M S4
- Low range is 0 km/h to 24 km/h (0 mph to 15 mph), 855M S4
- High range is 0 km/h to 71 km/h (0 mph to 44 mph), 825M S4
- High range is 0 km/h to 51 km/h (0 mph to 32 mph), 855M S4
- Ability to creep along slowly to maneuver in tight spaces
- Standard full clutch enclosure with high speed fan provides longer belt and clutch life
- High-ratio clutches with three cam weights for maximum belt clamp load in high torque conditions
- Powertrain reduction ratios:
- The complete reduction ratios range for high gear is (8.6:1 at top speed and 42:1 at initial clutch engagement
- The complete reduction ratios range for low gear is (17.9:1 at top speed and 86.8:1 at initial clutch engagement
- NOTE: Delivery and torque to the ground depends on tire size which is a function of nominal size and pressure.
How the variable-speed drive works:
- As engine speed increases, the spring-loaded drive clutch is closed by weights being forced out by centrifugal force.
- As the drive clutch closes, the belt rides up to the largest diameter of the drive clutch and forces open the driven clutch.
- With the belt running in the smallest diameter of the driven clutch, the speed being transferred to the transaxle is increased.
- The driven clutch is designed to sense varying loads (inclines, mud, etc.) and constantly adjusts drive speed upward or downward so that engine rpm remains optimal.
TRANSAXLE, MFWD, AND CV SHAFTS
Side view of CVT intake and clutch on closure (XUV855 shown)
Front differential rocker switch
Rear end shot of sway bar, suspension components, and CV shafts (XUV825M S4)
-
Operator interface
-
On-demand true 4WD system with an auto-locking front differential and dash-mounted electronic rocker switch is best-in-class; when the rocker switch is in the on (4WD) position, the front differential will automatically lock for extra traction when needed, but when the rocker switch is in the off (2WD) position, the vehicle will remain in 2WD
-
Provides exceptional traction in challenging conditions
-
Maintains turf-friendly operation in 2WD mode
-
Illuminated for low light operation
-
-
-
Transaxle
-
Two-speed fully enclosed oil bath transaxle allows for superior pulling ability
-
Cast aluminum design is the most robust in the industry
-
Helical forward and reverse gears are used for quiet operation
-
Rear traction assist (differential lock) is built in and can be engaged on demand
-
Allows locking the rear drive wheels together
-
Provides increased traction in tough spots
-
NOTE: Differential design reduces scuffing of the turf during turns because it allows the inside wheels to turn slower than the outside wheels
-
-
Neutral start safety interlock for engine ignition system
-
Large, sealed bearings are located inside the housing for better protection and durability
-
Contains gear case for transferring power to the MFWD
-
Splined shaft interfaces for maximum torque transfer and durability
-
All drive gears machined from highest grade gear steel
-
Protected by a skid plate
-
-
Mechanical front-wheel drive
-
Electronic design is auto-locking for ease of use
-
Performs like a locking differential when engaged, but like an open differential when cornering
-
Offers positive engagement of both front wheels in forward and reverse as a differential package
-
Automatic engagement on the fly—no shift linkages required
-
-
Protected by a skid plate and frame
-
-
Drive shafts
-
Rear CV shaft diameter measures 27 mm (1.1 in.) and designed for peak engine and braking torque
-
Front CV shaft diameter measures 23.9 mm (0.94 in.) and designed for peak engine torque
Propshaft (transaxle to MFWD shaft) diameter measures 23 mm (0.91 in.) and designed for peak engine torque -
All CV Shaft and propshaft joints are maintenance free and protected by exclusive Neoprene boots for durability
-
Extra-durable deluxe cargo box ensures hard-working performance and longevity
Deluxe cargo box
The deluxe cargo box consists of a 15 percent glass-filled polypropylene composite material that eliminates rust, dents, and reduces noise.
DELUXE CARGO-BOX TAILGATE
Tailgate handle
Tailgate lowered to 150 degrees
The tailgate can be opened or removed for easier cleanout and to carry longer items. The tailgate has been improved, features truck-like performance, and can be operated with one hand.
The standard installed lanyards can also be removed to lower the tailgate to 150 degrees for convenient loading and unloading tasks.
DELUXE CARGO-BOX TILT
Integrated handle for manual cargo-box tilt
The deluxe cargo box is now easier to latch, unlatch, raise, and lower with the integrated handle design and gas assist.
A prop rod is provided to hold the box in the upright position for operator convenience, as well as limit box pivot travel.
INTEGRATED TIE-DOWN POINTS
Integrated tie-down point in cargo-box bed
Additional tie-down points (TH 6X4 shown)
The deluxe cargo box offers integrated tie-down points for increased versatility. Tie down points are located in the following areas:
- Four corners inside the cargo-box bed
- Four points on the load guard directly behind the operator station (A)
- Tie-down bars on either side of the cargo box (B)
- Six points on the underside of the cargo-box frame (circled)
SPECIFICATIONS
| Length | 1143 mm (45 in.) |
| Width | 1320 mm (52 in.) |
| Depth | 304 mm (11 in.) |
| Volume | 0.46 m3 (16.4 ft3) |
| Weight capacity | 454 kg (1000 lb) |
| Dump angle | 47 degrees |
CAUTION: Carrying extra-long cargo that extends beyond the box can adversely affect stability.
CONVERTING DELUXE CARGO BOX TO A FLAT BED
Deluxe cargo box converted to flat bed (XUV825 shown)
The deluxe cargo box easily converts to a flat bed. The flatbed configuration allows loading larger cargo.
OPTIONAL ACCESSORIES
Brake and taillight with protector
Bedmat—protects the steel floor from dents
Cargo box power lift
Optional accessories for the deluxe cargo box include:
- Factory-installed brake and taillight with protector
- Factory-installed spray-in liner (not shown)
- Improves skid resistance and surface abrasion protection
- Cargo box bed mat
- Cargo box power lift
Attachment-ready electrical system
On M- and R-trim vehicles, adding attachments and accessories is made easier by the inclusion of some main wiring harnesses that facilitate efficient hook-up.
Roof harness electrical port
Main vehicle harness – winch connection
| Cargo box lift | Backup alarm | Brake / Tail / Reverse lights | Speed limiter kit | Base radio | Heater | 4500 lb winch | Premium radio (base radio kit needed) | LED lights - front OPS | Windshield wiper | Windshield washer | LED lights - brushguard | LED headlights | Turn signals | Horn | Beacon light | LED lights - rear OPS | Sprayers | Spreaders | AMS integration kit | |
| E | a | a | a,c | a,c,d | a,c,d | a,c,d | a,b | a,b | a,b | a,b | a,c,e | a,c,e | a,f | a,f | a,c,e,f | |||||
| M open | c | c,d | c,d | c,d | b | b | b | b | c,e | c,e | f | f | c,e,f | |||||||
| M cab | b | b | b | b | e | e | f | f | e,f | |||||||||||
| R | f | f | f |
| = connections in base harness | |
| a | E-spec Attachment Harness |
| b | Front Attachments Harness |
| c | Roof attachment harness |
| d | Front cab harness |
| e | Rear cab harness |
| f | Dash port harness |
| * | If blank, the base chassis harness has the connector for the attachment |
Equipped with power steering
This Gator™ XUV Crossover Utility Vehicle is equipped with power steering and a dual A-arm front suspension. These automotive-type systems exhibit excellent handling characteristics, as well as responsive steering and low steering effort:
-
Steel ball bearings secure the steering shaft and deliver smooth, responsive operation
-
Completely-sealed rack-and-pinion for long life
- Low steering ratio (lock-to-lock) provides more responsive steering and less operator input
-
Shaft U-joints are phased for a smooth, uninterrupted motion of the steering wheel
Electric power-assist steering system
Electric power-assist steering (EPAS) system has advanced features:
- Anti-kickback feature reduces the amount of steering unwinding when traversing difficult terrain.
- The system is speed sensing and adjusts steering effort as the speed of the vehicle changes.
- As speed increases, there is less steering assist for improved road feel.
- As speed decreases, steering assist increases to give lower steering efforts for improved maneuverability.
- A warning/functional light on the instrument panel provides self-diagnostics and a warning light in the situation of no assist.
- Torque sensor measures steering wheel input so the on-board computer can provide the appropriate output for various driving situations.
With the EPAS system, the operator maintains a direct, mechanical linkage from the steering wheel to the front wheels. The power-steering system interfaces mechanically with the steering system by being inserted between the steering wheel and the rack-and-pinion assembly.
A differential torque sensor is integrated into the power steering assembly. The circuit board assembly is also integral with the power-steering assembly.
Power steering does not reduce turning radius but significantly reduces steering effort by approximately 85 percent compared to those models without power steering.
EPAS INTERFACE DIAGRAM
EPAS interface diagram
The numbered descriptions refer to the EPAS interface diagram shown above:
- Torque sensor
- Engine control unit (ECU)
- Fail-safe relay
- Current/thermal control circuit
- Reduction gears
- DC motor
- Rack and pinion
- Function/warning light
- Key power and ground
- Vehicle speed sensor
- Instrument cluster
- Relay module
M trim details
The M trim adds electrical power-assist steering (EPAS) and brings in the main wiring harness for easier attachment hook-up. Cabs are available in this trim level. Heating, ventilation, and air conditioning (HVAC) is also an option within the M-trim level.
BUILD-TO-ORDER OPTIONS
- Roof standard on all units – can order less roof on open station units
- Available factory-installed winch on M- and R-trim units
- Available factory-installed front glass windshield on M Trim open station units
- Available factory-installed rear glass panel on M Trim open station units
- Available factory-installed brush guard
- Available factory-installed brush guard extensions
- Available factory-installed rear cargo box fender guards (rear bumper required, also factory installed)
Specifications
| Specifications | ||||
|---|---|---|---|---|
| John Deere XUV865M Crossover Utility Vehicle |
Key Specs
| Engine power | 17.0* kW 22.8* hp |
|||
|---|---|---|---|---|
| Maximum traveling speed | 0-32 hi forward, 0-15 lo forward, 0-18 reverse mph 0-51 hi forward, 0-24 lo forward, 0-29 reverse km/h |
|||
| Cargo box dimensions | 1143 x 304.8 x 1320 mm 45 x 12 x 52 in. |
|||
| Cargo box capacity (weight) | 454 kg 1000 lb |
|||
| Towing capacity | 907 kg 2000 lb |
|||
| Front suspension | Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel\ | |||
| Rear suspension | Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel | |||
| Final drive | Two speed, oil bath | |||
| Four wheel drive | On-demand true four-wheel drive system | |||
| Fuel capacity | 42.4 L 11.2 U.S. gal. |
Engine
| Type | 4-cycle gas, Electronic Fuel Injection (EFI) | |||
|---|---|---|---|---|
| Displacement | 854 cc | |||
| Power | 17.0* kW 22.8* hp |
|||
| Cooling system | Liquid |
Drivetrain
| Transmission | Continuously Variable Transmission (CVT) with clutch enclosure | |||
|---|---|---|---|---|
| Final drive | Two speed, oil bath | |||
| Four wheel drive | On-demand true four-wheel drive system | |||
| Traction assist | Positive locking, mechanically actuated (hand-operated) | |||
| Descent control | Yes | |||
| Maximum traveling speed | 0-32 hi forward, 0-15 lo forward, 0-18 reverse mph 0-51 hi forward, 0-24 lo forward, 0-29 reverse km/h |
Suspension
| Front | Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel | |||
|---|---|---|---|---|
| Rear | Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel |
Brakes
| Type | Front/rear hydraulic disc with twin piston front calipers | |||
|---|---|---|---|---|
| Park brake | Driveline, internal wet multi-disc, foot operated (hand release) |
Tires / Wheels
| Front | 25x9-12 Terrahawk AT, 27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims) | |||
|---|---|---|---|---|
| Rear | 25x11-12 Terrahawk AT, 27x11-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims) |
Dimensions / Capacities
| Wheelbase | 2146 mm 84.5 in. |
|||
|---|---|---|---|---|
| Dry weight | 1845 lb 839 kg With Cab and HVAC: 1001 kg With Cab and HVAC: 2202 lb *Additional Attachments and Accessories will add weight |
|||
| Length | 127 in 3228 mm |
|||
| Width | 63.7 in. 1618 mm With doors: 1763 mm With doors: 69.4 in. |
|||
| Height | 78 in. 1981 mm With roof: 1987 mm With roof: 78.25 in. |
|||
| Tread centers | Front: 1341 mm Front: 52.8 in. Rear: 1259 mm Rear: 49.6 in. |
|||
| Ground clearance | 11.2 in. 284 mm |
|||
| Fuel capacity | 11.2 U.S. gal. 42.4 L |
|||
| Cargo box dimensions | 1143 x 304.8 x 1320 mm 45 x 12 x 52 in. |
|||
| Cargo box capacity (weight) | 454 kg 1000 lb |
|||
| Payload capacity | 1500 lb 680 kg |
|||
| Towing capacity | 2000 lb 907 kg |
|||
| Hitch | Standard 2-in. receiver |
| Color | Green/Yellow | |||
|---|---|---|---|---|
| Power steering | No on E Trim; Yes on M and R Trim | |||
| Battery / Alternator / Power port | 480 CCA 55 amp @ 7000 rpm, regulated, 660 watts |
|||
| Instrumentation | Digital Display (system diagnostic light, speed, rpm, 4WD indicator, fuel level, coolant temperature, hour meter, miles, park brake light, EPAS indicator) | |||
| Storage | 4 Cup Holders (2 additional for cab units), in dash, Under Seat (56.69 L), Glovebox (3.85 L), Optional Under Hood - except for HVAC units or units with the dealer installed heater kit | |||
| Seating | Bench (Available Bucket Seats on E and M Trim) | |||
| Headlights | Halogen - Single Beam (LED Dual Beam on R Trim)\ |
Additional information
| Country of Manufacture | U.S. |
|---|
-
XUV560E Crossover Utility Vehicle -
XUV560E S4 Crossover Utility Vehicle -
XUV590E Crossover Utility Vehicle -
XUV590M Crossover Utility Vehicle -
XUV590M S4 Crossover Utility Vehicle -
XUV825M S4 Crossover Utility Vehicle -
XUV835E Crossover Utility Vehicle -
XUV835M Crossover Utility Vehicle -
XUV835M Cab Crossover Utility Vehicle -
XUV835M HVAC Crossover Utility Vehicle
-
XUV835R Crossover Utility Vehicle -
XUV855M S4 Crossover Utility Vehicle -
XUV865E Crossover Utility Vehicle -
XUV865M Cab Crossover Utility Vehicle -
XUV865M HVAC Crossover Utility Vehicle
-
XUV865R Crossover Utility Vehicle
YOU MAY ALSO BE INTERESTED IN...
Maintenance and Support
Product modules and features has been compiled for worldwide circulation with general information, pictures, and descriptions of features not available in all countries. In some countries, products and accessories may require modifications or additions to ensure compliance with local regulations. Contact your local John Deere dealer for details.
