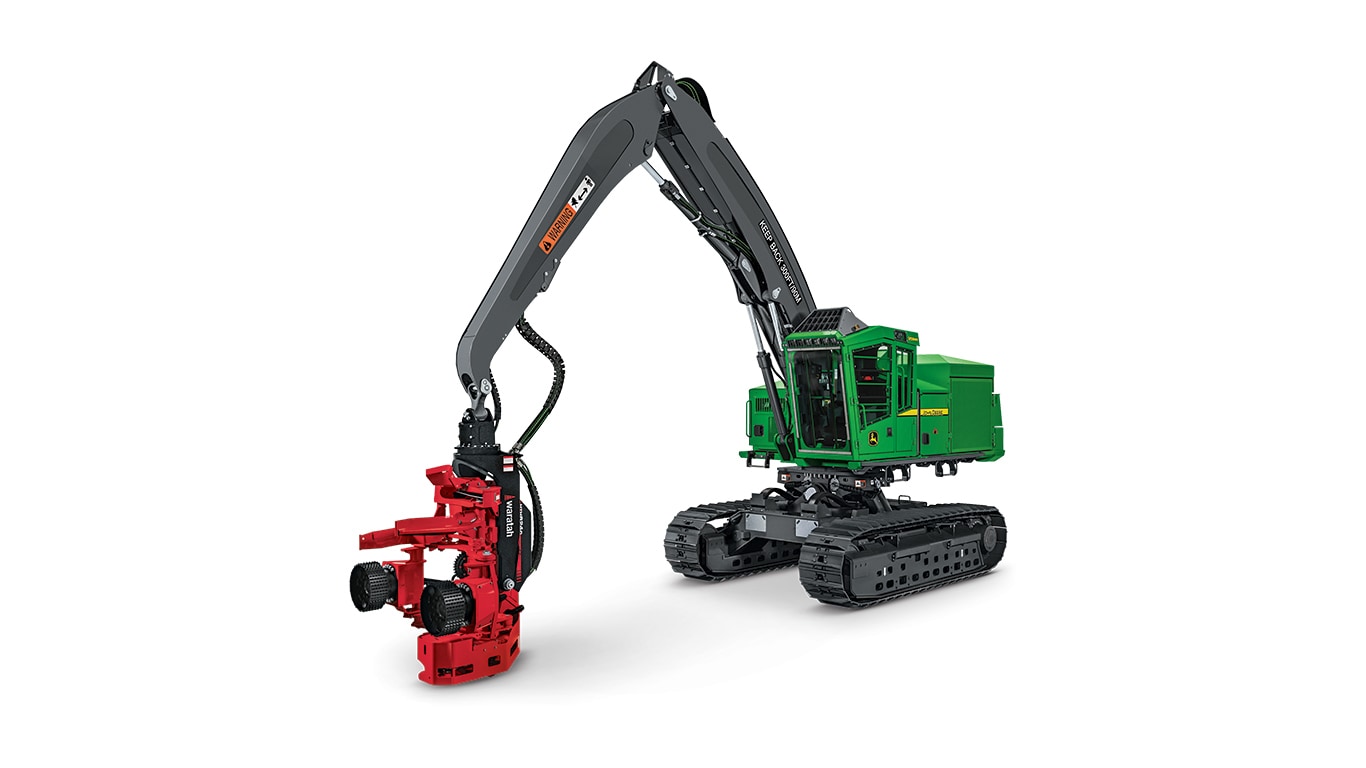

959MHTracked Harvester
- Peak Power: 246 kW (330 hp) @ 1,900 rpm
- Max. Boom Reach: 10.34 m
- Tractive Effort: 373 kN
With the optional IBC, operators no longer need to control each independent boom function separately. One joystick moves the boom tip horizontally, while a second guides it vertically, and IBC automatically guides the boom and cylinders accordingly.
This map-based production-planning and -tracking system allows contractors and operators alike to share real time production and location information – taking the guesswork out of effective decision-making.
With IBC, operators no longer need to control each independent boom function separately. Just control the attachment position, and IBC automatically guides the boom and cylinders accordingly. IBC also automatically controls swing speed based on the overall position of the attachment.
IBC is easily configurable to user preference, so operators can adapt their motions to the application. Individual user settings can be saved in up to eight separate profiles, to accommodate multiple skill and experience levels.
For applications requiring extended harvesting reach with less machine movement, optional 10.34-meter long boom reaches over 10 meters either uphill or down.
A heavy-duty John Deere PowerTech™ Plus 9.0L diesel engine delivers low total fluid consumption and high dependability.
The slope-monitoring system measures the actual ground-slope angle the machine is working on and displays it on the in-cab monitor, for more confident operation in tough steep-slope conditions.
Long and wide undercarriage combined with our industry-leading leveling system maximizes stability on steep slopes and other challenging terrain conditions.
Take the guesswork out of planning, implementing, and monitoring your logging operation. The tools of our production-planning and -tracking system expand on the core technology features that come standard in every John Deere Forestry machine to unleash a powerful new array of possibilities:
Your John Deere Forestry machine arrives from the factory equipped with a powerful set of technologies and capabilities already built in:
DRIVELINE |
|
Engine Manufacturer | John Deere |
Engine Model | PowerTech Plus 6090 PSS |
Displacement, ltr | 9 |
Rated Speed, rpm | 1900 |
Engine Output, kW (hp) | 246 |
Engine Torque, Nm | 1392 |
Carrier Rollers - Each Side | 2 |
Track Rollers - Each Side | 9 |
Track Shoe Width, mm | 610 |
DIMENSIONS |
|
Height Over Cab, mm | 4030 |
Width, mm | 3200 |
Overall Track Length, mm | 4900 |
Track Length On Ground, mm | 3810 |
Tailswing Radius, mm | 3180 |
Ground Clearance, mm | 747 |
Superstructure Width, mm | 3200 |
Slewing Angle, Degrees | 360 |
Cab Leveling tilt (Forward), Degrees | 26 |
Cab Leveling tilt (Rear), Degrees | 14 |
Cab Leveling tilt (Side), ± Degrees | 7 |
CAPACITIES |
|
Fuel Tank, ltr | 1080 |
Number of Alternators | 2 |
Alternator Output, Amp | 100 |
PERFORMANCE |
|
Slew Speed, rpm | 4,8 |
Travel Speed, kph | 3,6 |
Reference Harvesting Head | Waratah HTH624C |
Felling Diameter, mm | 810 |
Delimbing Diameter, mm | 760 |
Cutting Radius - Maximum, mm | 9120 |
Cutting Radius - Minimum, mm | 3680 |
Cutting Swath Horizontal, mm | 5440 |
System Voltage, V | 24 |
Main Pump | Axial Piston |
Pump Flow, lt/min | 532 |
WEIGHTS |
|
Operating Weight, kg | 40914 |
Weight - With Reference Head, kg | 40914 |
Weight - Without Reference Head, kg | 37454 |
Product modules and features has been compiled for worldwide circulation with general information, pictures, and descriptions of features not available in all countries. In some countries, products and accessories may require modifications or additions to ensure compliance with local regulations. Contact your local John Deere dealer for details.
