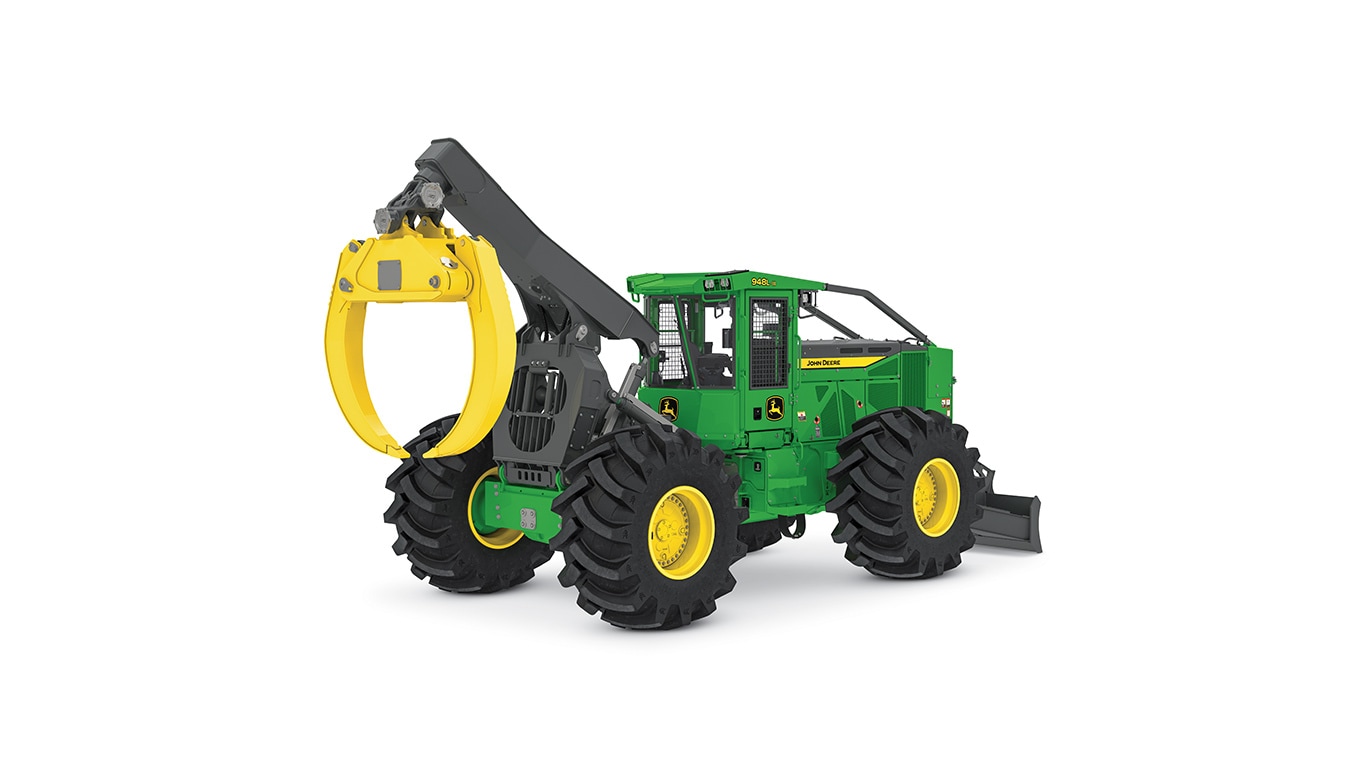

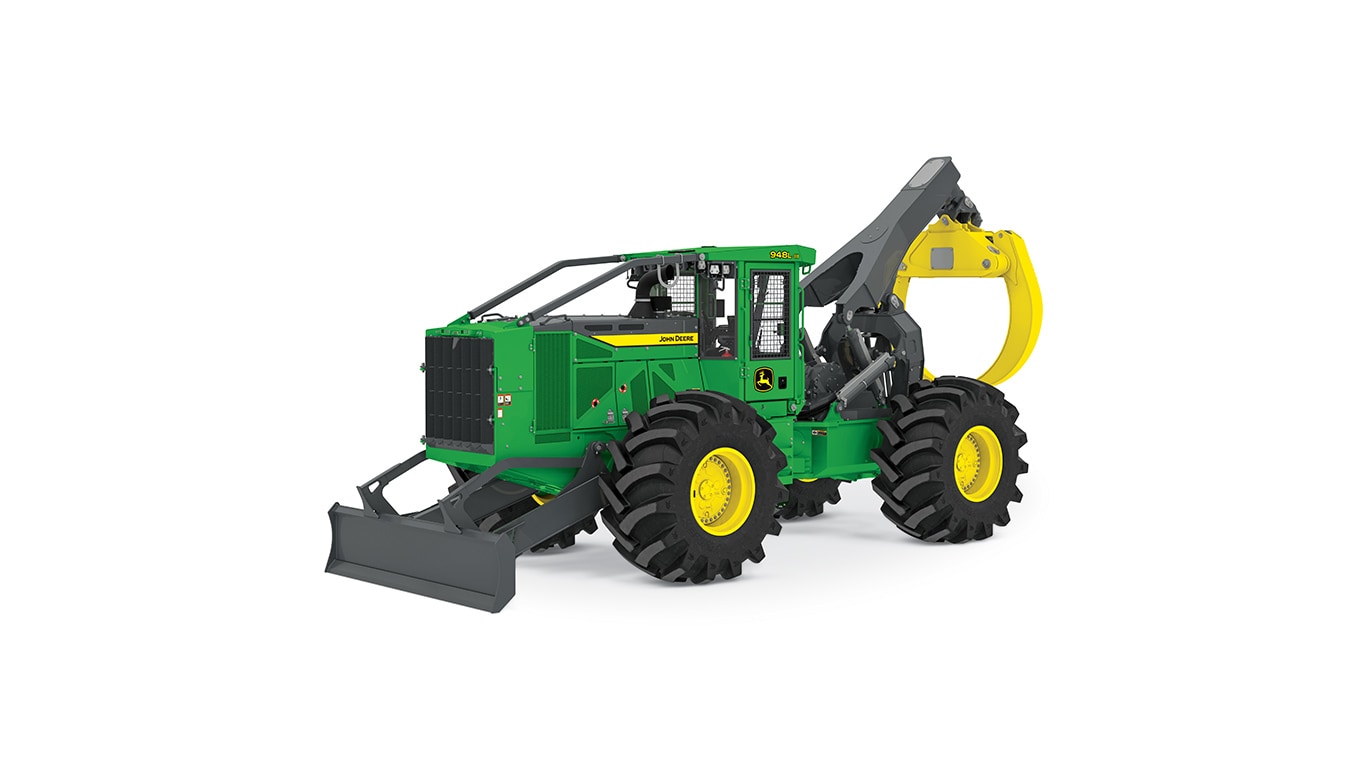

948L-IIIGrapple Skidder
- Gross Power: 224 kW (300 hp)
- Gross Torque: 1369 Nm (1,009 ft.-lb.)
- Max. Grapple Capacity: 2.07 m2 (22.3 sq. ft.)
- Operating Weight: 23 094 kg (50,913 lb.)
Specifications
| Specifications | ||||
|---|---|---|---|---|
| John Deere 948L-III Grapple Skidder |
DESCRIPTION
| Standard Arch Function | Dual |
|---|
DRIVELINE
| Engine Manufacturer | John Deere | |||
|---|---|---|---|---|
| Engine Model | PowerTech PSS 9.0L | |||
| Displacement, ltr (Inches³) | 9 (549) | |||
| Engine Output, kW (hp) | 224 (300) | |||
| Engine Torque, Nm (lbf / ft) | 1369 (1009) | |||
| Transmission | Continuous Variable Transmission | |||
| Planetaries | Inboard | |||
| Service Brake Type | Inboard Wet discs | |||
| Parking Brake Type | Wet multi-disc in Transmission |
DIMENSIONS
| Overall Length, mm (inches) | 9982 (393) | |||
|---|---|---|---|---|
| Height Over Cab, mm (inches) | 3454 (136) | |||
| Overall Width, mm (inches) | 3575 (140.7) | |||
| Wheelbase, mm (inches) | 3975 (156.5) | |||
| Dozer Blade Height, mm (inches) | 691 (27.2) | |||
| Ground Clearance, mm (inches) | 604 (23.7) | |||
| Dozer Blade Width, mm (inches) | 2962.4 (116.6) | |||
| Dozer Blade - Dig Depth, mm (inches) | 298 (11.7) | |||
| Tong Opening At Tips, mm (inches) | 3886 (153) | |||
| Enclosure Area, m² (ft²) | 1.63 (17.5) | |||
| Steering Articulation Angle, ± Degrees | 45 |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 391.8 (103.5) | |||
|---|---|---|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 123.6 (32.6) | |||
| Alternator Output, Amp | 150 |
PERFORMANCE
| Travel Speed, kph (mph) | 25 (15.53) | |||
|---|---|---|---|---|
| Oscillation Point | Front axle | |||
| Oscillation Angle, ± Degrees | 15 | |||
| Rated Line Pull, kN (lbf) | 213.5 (47997) | |||
| Rated Line Speed, m/min (ft/min) | 20.1 (66) | |||
| System Voltage, V | 24 | |||
| Pump | Var. piston |
WEIGHTS
| Operating Weight, kg (lbs) | 23094 (50913) |
|---|
