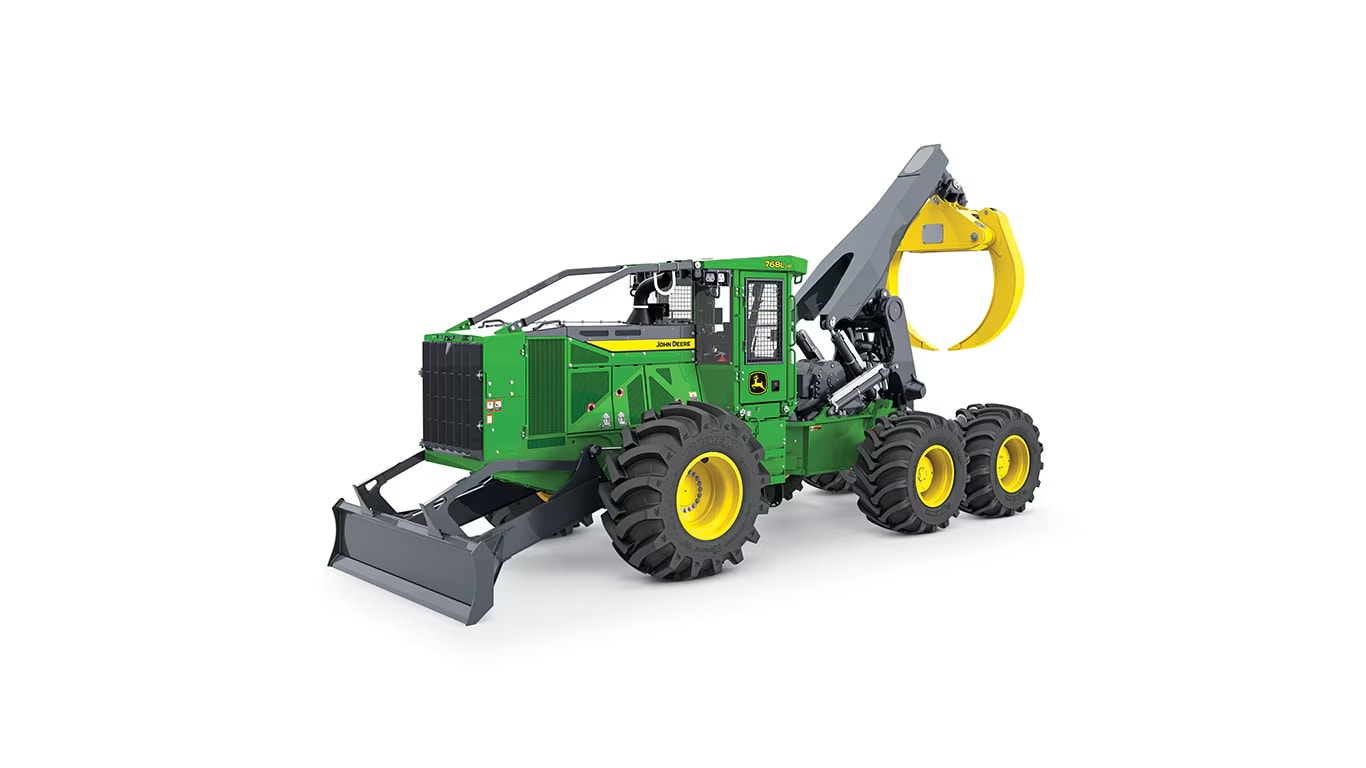

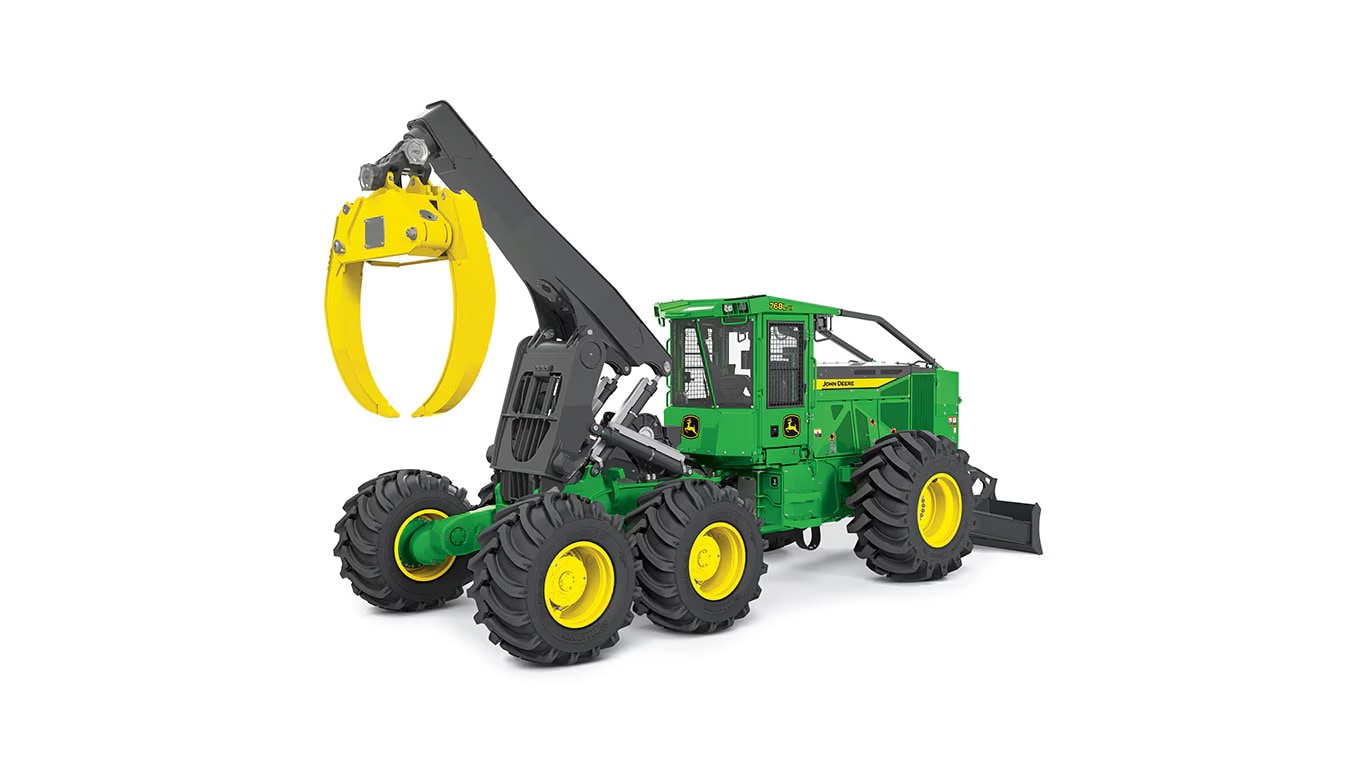

768L-IIIGrapple Skidder
- Gross Power: 210 kW (281 hp)
- Gross Torque: 1276 Nm (941 ft.-lb.)
- Max. Grapple Capacity: 2.07 m2 (22.3 sq. ft.)
- Operating Weight: 23 697 kg (52,245 lb.)
Specifications
| Specifications | ||||
|---|---|---|---|---|
| John Deere 768L-III Grapple Skidder |
DESCRIPTION
| Standard Arch Function | Dual |
|---|
DRIVELINE
| Engine Manufacturer | John Deere | |||
|---|---|---|---|---|
| Engine Model | PowerTech PSS 9.0L | |||
| Displacement, ltr (Inches³) | 9 (549) | |||
| Engine Output, kW (hp) | 210 (281) | |||
| Engine Torque, Nm (lbf / ft) | 1276 (941) | |||
| Transmission | Continuous Variable Transmission | |||
| Planetaries | Inboard | |||
| Rear Axle | Bogie | |||
| Service Brake Type | Inboard Wet discs | |||
| Parking Brake Type | Wet multi-disc in Transmission |
DIMENSIONS
| Overall Length, mm (inches) | 11100 (437) | |||
|---|---|---|---|---|
| Height Over Cab, mm (inches) | 3365 (132.5) | |||
| Overall Width, mm (inches) | 3508 (138.1) | |||
| Wheelbase, mm (inches) | 4416.7 (173.8) | |||
| Dozer Blade Height, mm (inches) | 691 (27.2) | |||
| Ground Clearance, mm (inches) | 557 (21.9) | |||
| Dozer Blade Width, mm (inches) | 2962.4 (116.6) | |||
| Dozer Blade - Dig Depth, mm (inches) | 359 (14.1) | |||
| Tong Opening At Tips, mm (inches) | 3785 (149) | |||
| Enclosure Area, m² (ft²) | 1.63 (17.5) | |||
| Steering Articulation Angle, ± Degrees | 45 |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 352 (93) | |||
|---|---|---|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 123.6 (32.6) | |||
| Alternator Output, Amp | 150 |
PERFORMANCE
| Travel Speed, kph (mph) | 17.97 (11.16) | |||
|---|---|---|---|---|
| Oscillation Point | Front axle | |||
| Oscillation Angle, ± Degrees | 15 | |||
| Rated Line Pull, kN (lbf) | 213.5 (47997) | |||
| Rated Line Speed, m/min (ft/min) | 20.1 (66) | |||
| System Voltage, V | 24 | |||
| Pump | Var. axial-piston |
WEIGHTS
| Operating Weight, kg (lbs) | 23697 (52245) |
|---|
