Get a quick glimpse of the added benefits for your logging jobsite. Stable & smooth axles and tires that deliver great ground pressures, flotation, and maneuverability help you defeat the uphill battle and conquer wet or soft terrains.

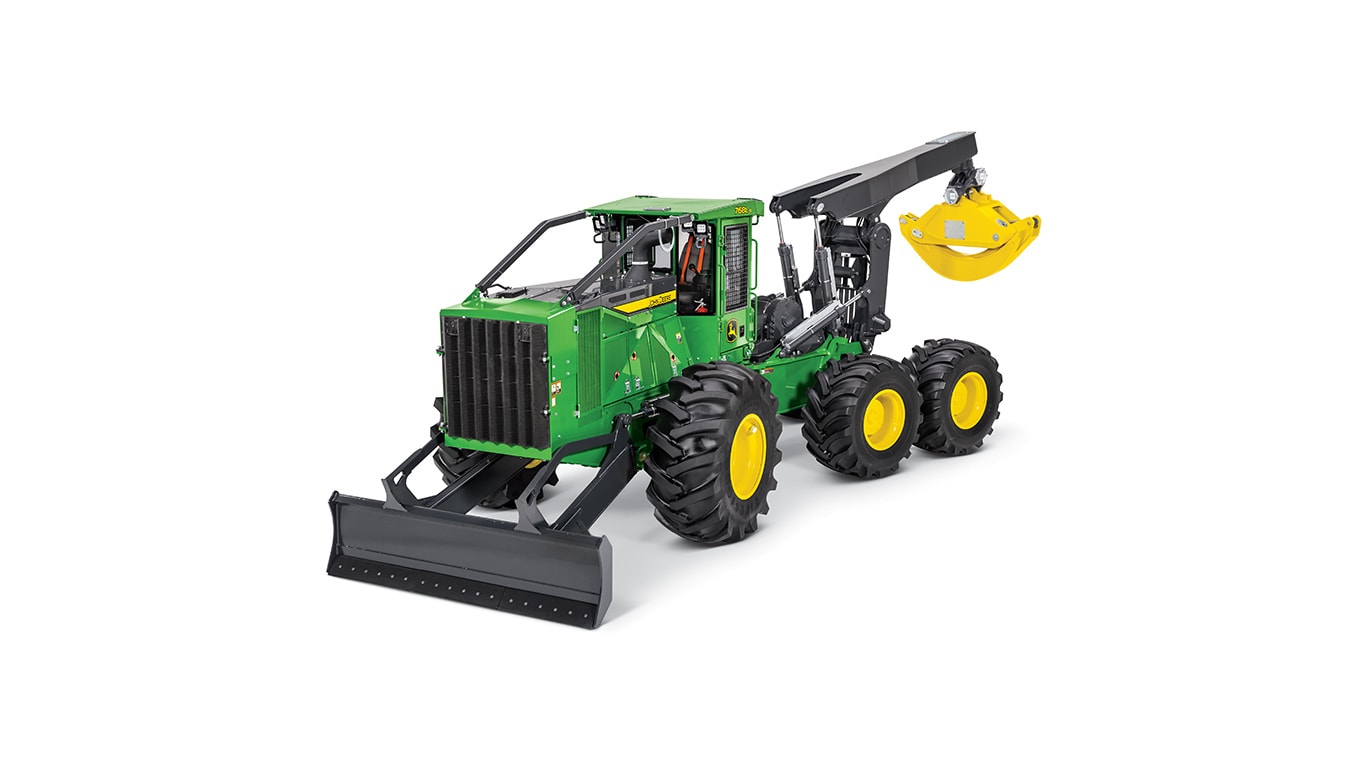

The new six-wheel 768L-II Bogie Skidder delivers outstanding traction, stability, and flotation, so you can work in wet conditions and on steep slopes. It’s built tough to carry hefty loads over long distances — and help your operation reach its full potential.
The easy-to-use CVT transmission combines the smoothness and operating ease of a hydrostatic transmission with the fuel efficiency of a lockup torque converter.
Confidently pull heavy loads and maneuver on hillsides and in wet terrain thanks to superb bogie-axle stability. Operators can also appreciate the reduced machine vibration and smooth ride.
Grapple options ranging from 17.5 to 22.3 square feet help you deliver more wood to the landing with fewer skids. Grapple squeeze provides a constant pressure, so operators are less likely to lose a log, even if a load gets jarred.
The easy-to-use CVT transmission automatically senses the load and delivers more torque and tractive effort as needed to maintain the desired speed.
John Deere 768L-II Bogie Skidder
|Standard Arch Function||Dual|
|Engine Manufacturer||John Deere|
|Engine Model||PowerTech PSS 9.0L|
|Engine Output, kW (hp)||210 (281)|
|Engine Torque, Nm||1276|
|Transmission||Continuous Variable Transmission|
|Service Brake Type||Inboard Wet discs|
|Parking Brake Type||Wet multi-disc in Transmission|
|Overall Length, mm||9075,3|
|Height Over Cab, mm||3365|
|Overall Width, mm||3508|
|Dozer Blade Height, mm||691|
|Ground Clearance, mm||557|
|Dozer Blade Width, mm||2962,4|
|Dozer Blade - Dig Depth, mm||359|
|Tong Opening At Tips, mm||3785|
|Enclosure Area, m²||1,63|
|Steering Articulation Angle, ± Degrees||45|
|Fuel Tank, ltr||352|
|Hydraulic Tank, ltr||123,6|
|Alternator Output, Amp||150|
|Travel Speed, kph||17,97|
|Oscillation Point||Front axle|
|Oscillation Angle, ± Degrees||15|
|Rated Line Pull, kN||213,5|
|Rated Line Speed, m/min||20,1|
|System Voltage, V||24|
|Operating Weight, kg||23697|
This map-based production-planning and -tracking system allows contractors and operators alike to share real time production and location information – taking the guesswork out of effective decision-making.
