RowCommand™ individual-row control system

ROWCOMMAND CONTROLS SEED OUTPUT

RowCommand on a MaxEmerge™ 5 row-unit

RowCommand on a chain drive MaxEmerge 5 row-unit

Controlling input costs and improving productivity are key producer requirements today. RowCommand is an effective, integrated John Deere solution designed to meet these intensifying needs. The RowCommand system manages seed output, reduces yield drag, and improves harvest capabilities on all Pro-Shaft™ driven row-units, and chain-driven MaxEmerge 5.

NOTE: Chain-drive RowCommand is only compatible with planters equipped with pneumatic downforce systems. On planters equipped with the heavy-duty downforce springs, potential chain interference may result and is not recommended.

NOTE: Chain-drive RowCommand requires some modification to brackets in order to function with corn finger pickup meters. Information on the modifications needed is found in the following sales material.

NOTE: Pro-Shaft drive RowCommand is compatible on MaxEmerge 5 row units with vacuum and corn finger pick-up meters. For mini hopper row units, RowCommand is compatible on vacuum meters only and is not compatible on corn finger pick-up meters. There is a select group of planters that might have Pro-Series XP row units with corn finger pick-up meters in which RowCommand will not be compatible.

RowCommand controls seed output by incorporating individual, low amperage clutches inside the Pro-Shaft and chain-driven gearboxes. Clutches are completely enclosed within the gearbox housing to protect them from the elements and harsh operating conditions.

When power is supplied, either manually or through Swath Control Pro™ software, clutches disengage the seed meters and seed flow stops. Controlling seed output at individual rows reduces overplanting in point rows and maximizes seed placement when entering/exiting headlands.

COMPONENTS AND OPERATION

EPMs shown on a 1775 NT Planter

RowCommand clutch on MaxEmerge 5 with 3 bu hopper

RowCommand is a simple and efficient solution to control individual row planting. This system does not utilize air to operate; therefore, no compressor, entangling air lines, or valve modules are required.

RowCommand utilizes low-voltage controller area network (CAN) messaging to signal power to the desired clutches to stop planting or eliminates power to resume planting.

This means very little power is used in normal planting conditions, and in the event a clutch fails electrically, the meter will continue to plant.

The RowCommand system requires the following five basic components to operate:

Electric clutches
Electronic power modules (EPMs)
SeedStar™ 2 monitoring (wedge box/controller)
GreenStar™ (GS) 2 display
Planter wiring harnesses

Clutches are protected within the sealed Pro-Shaft and chain-driven gearboxes for years of trouble-free operation and simple installation or removal. RowCommand has true individual-row control of up to 16 clutches or sections for planters larger than 16 rows.

Unique to RowCommand, the 16 available control sections can be configured based on operator preferences. For example, on a 1775 NT 24-Row Planter, every two rows can be paired together for a total of 12 control sections, or control the outermost eight rows individually and the remaining inner rows paired together for 16 control sections. No other system can match this flexibility.

While SeedStar 2 with RowCommand has 16 control sections, a minimum of 152-cm (60-in.) wide sections are recommended for optimum Swath Control Pro capabilities. As with other Swath Control Pro products, a StarFire™ 2 signal is the minimum level of accuracy recommend for operation.

INTEGRATED SWATH CONTROL PRO™

Coupling RowCommand with Swath Control Pro provides the ultimate in precision planting and productivity. One company, one integrated solution are what we offer by incorporating Swath Control Pro capabilities within the SeedStar 2 wedge box (controller). Unlike previous systems, no rate controller, additional harnessing, or components are required to achieve automated individual-row control.

SeedStar 2 monitoring, RowCommand, and Swath Control Pro activation from Ag Management Services (AMS) are all that is needed to reap the benefits of this technology. A single Swath Control Pro activation can now be leveraged across sprayers, nutrient applicators, planters, and air seeders.

SYSTEM REQUIREMENTS

RowCommand is a simple and efficient means to control individual row planting through the use of low-voltage electric clutches. When activated, each clutch consumes no more than 0.5 amps. By design, power is only supplied to the clutch when a signal is received to stop planting. In a normal planting condition, no power is supplied and the clutch is de-energized.

Power for the RowCommand system is provided from the 9-pin ISO implement connector. All late-model 8X00 and 9X00 Series John Deere Tractors equipped with the 9-pin ISO implement connector are capable of supplying ample power for system operation.

Along with ample system power, a GS 2 Display and SeedStar 2 monitoring are required for operation and control interface. The GS 2 Display is where system setup, control settings, and manual control functions are performed.

ROWCOMMAND ORDERING INFORMATION

To add RowCommand to a model year 2009 and newer planter model listed above is simple. Pro-Shaft drive attachments for field conversion and chain drive attachments for field conversion are available by planter model to add the appropriate number of clutches, EPMs, brackets, hardware and row-unit harnesses. For complete installation and part detail for the RowCommand conversion, please use the RowCommand compatibility tool per specific planter model.

RowCommand is compatible and available for model year 2003 (serial number 700101) to 2008 (725101) planter models listed above. In addition to the attachment for field conversion attachment, a planter mainframe harness, SeedStar 2 controller (wedge box), and additional CAN harnesses are needed.

PRO-SHAFT DRIVE ROWCOMMAND PLANTERS

RowCommand is available as a factory-installed option or as an attachment for field conversion attachments for the following Pro-Shaft drive planter models (see chart below).

Planter model	Row configuration
1725	12-row narrow, 12-row wide, and 16-row narrow
1725 CCS™	16-row narrow
1765	12-row narrow
1775	12-row narrow
1775NT	12 row, 16 row, and 24-row narrow
1775NT CCS	12 row, 16 row, and 24-row narrow
1795	12/23 row, 12/24 row, 16/31 row, and 16/32 row
1795	24 row, 50 cm (20 in.)
DB 44	24 row, 56 cm (22 in.)
DB 58	32 row, 56 cm (22 in.)
DB 60	36 row, 50 cm (20 in.) or 47 row, 38 cm (15 in.)
DB 66	36 row, 56 cm (22 in.)
DB 80	32 row, 76 cm (30 in.) or 48 row, 50 cm (20 in.)
DB 88	48 row, 56 cm (22 in.)
DB 90	36 row, 76 cm (30 in.)
DB 120	48 row, 76 cm (30 in.)
DR (Deere/Orthman®) 16R40	16 row, 102 cm (40 in.)
DR (Deere/Orthman) 18R38	18 row, 97 cm (38 in.)

CHAIN DRIVE ROWCOMMAND PLANTERS

In terms of planter compatibility, RowCommand for chain drive is designed for the following planter model configurations equipped with pneumatic downforce systems.

Planter model	Row configuration
1725	12-row narrow, 12-row wide, and 16-row narrow
1765	12-row narrow
1775	12-row narrow
1775NT	12 row, 16 row, and 24-row narrow
1775NT CCS	12 row, 16 row, and 24-row narrow
DB 44	24 row, 56 cm (22 in.)

CHAIN DRIVE ROWCOMMAND AND HEAVY-DUTY DOWNFORCE

Chain interference with heavy-duty downforce

As seen in the picture to the left, chain interference may result when operating chain-drive RowCommand on planters equipped with short and long parallel arms and heavy-duty downforce springs.

NOTE: Chain-drive RowCommand is only compatible with planters equipped with pneumatic downforce systems. On planters equipped with the heavy-duty downforce springs, potential chain interference may result and is not recommended.

CHAIN-DRIVE ROWCOMMAND WITH CORN FINGER PICKUP METERS

Bracket material removal

Due to the design characteristics of the chain drive RowCommand clutch, some modification to the corn finger pickup meter drive bracket is required. As seen in the picture to the left, some material needs to be removed from the front of the meter drive bracket in order for the chain-drive RowCommand clutch to have sufficient space for installation.

NOTE: Chain drive RowCommand requires some modification to brackets in order to function with corn finger pickup meters.

Seed variable-rate drive

Seed variable-rate drive provides the ultimate planting productivity by utilizing one, two, or three hydraulic motors (varies by model) to turn the seeding drive shaft. Hydraulic control of the seeding drive allows for on-the-go seeding rate changes right from the display mounted inside the tractor cab. Combine this seeding flexibility with the map-based planting option, and seeding rates adjust automatically based on the prescribed map.

Variable-rate drive offers the following advantages over common, ground, or contact-tire drive systems:

Rate changes are almost instantaneous; no ramp up or ramp down of system as in some competitive systems
Permits the producer to match seed population based on different soil types or irrigation practices
John Deere design provides added operator safety by eliminating any possible drive creep found in some competitive variable-rate drive systems

1755 equipped with variable-rate drive

1765NT equipped with variable-rate drive

Single- or dual-motor systems for variable-rate drives are available for all John Deere planters except the 1785 Rigid Frame. Variable-rate drive is available as a factory-installed option for all applicable planter models.

Single- or dual-motor systems are available as field-installed attachments for most planter models; however, a three-motor variable-rate drive field-installed attachment is not available.

Seed variable-rate drive requires the SeedStar™ monitor and a radar input signal. Either tractor or planter radar may be used. Planter radar is ordered separately.

NOTE: Peanut seed meter disks require the Variable Drive Transmission.

Row cleaner options to meet residue management needs

Crop yields have increased through the years along with the amount of residue left in the field after harvest. At the same time, tillage practices have changed, including different tillage operations which maintain large amounts of surface residue, and even no till practices. Row cleaners are an essential tool in managing this increased amount of residue.

John Deere seeding group offers a variety of row cleaner options to meet the needs of a producer's operation. Compatibility varies by model, row spacing, and other planter equipment.

SCREW-ADJUST UNIT-MOUNTED ROW CLEANER

Screw-adjust unit-mounted row cleaner

The screw-adjust unit-mounted row cleaner is mounted directly to the face plate of the row-unit, placing the ground engaging components just in front of the row-unit opener blades and depth gauge wheels. This close proximity allows the gauge wheels to control the depth of the row cleaner as well as the row-unit. This compact design also allows greater compatibility with fertilizer openers and other planter attachments.

SharkTooth® wheels are standard equipment on the unit-mounted row cleaner. The swept-tooth design of the wheel provides a clear path for the row-unit openers while resisting residue buildup on the wheel. The screw adjustment knob is accessible through the top of the parallel arms, providing convenient access for adjustments. The row cleaner can be adjusted in 1.6-mm (0.06-in.) increments, providing plenty of flexibility to meet the needs of changing conditions.

FLOATING ROW CLEANER WITH UNIT-MOUNTED COULTER

Floating row cleaner with unit-mounted coulter

The floating row cleaner allows a row cleaner to be used in conjunction with a unit-mounted coulter. This combination is often desired in heavy residue loads and tough reduced tillage planting conditions. The row cleaner provides a clear path for the row-unit, while the unit-mounted coulter helps penetrate tough soil conditions.

Accommodating the unit-mounted coulter means the residue wheels are farther forward from the row-unit face plate than in the case of the screw adjust row cleaner. To maintain performance, this row cleaner has the capability to float above a defined minimum depth.

Standard depth-gauging bands on the wheels allow the row cleaner wheels to float independently of the row unit openers, allowing both to perform in varying terrain. The unit may also be set in a fixed position by simply pinning through the bracket if desired. This row cleaner also features SharkTooth wheels as standard equipment.

The floating row cleaner and unit-mounted coulters are available on many planters as factory-installed equipment. As compatibility and details vary by model, review the following links for information on specific planter models.

1705, 1715, 1725, 1765NT, 1765, 1775 Flex, 1785 floating row cleaner
1775NT floating row cleaner
1795 floating row cleaner

SharkTooth is a trademark of Yetter Manufacturing.

NOTE: Screw-adjust row cleaners are not compatible with MaxEmerge™ 5e row-units with long parallel arms.

NOTE: DB models have the option for either unit-mounted coulter, screw-adjust row cleaners, or pneumatic row cleaners (only compatabile with MaxEmerge 5e or equipped ExactEmerge™ models). The DB60T is only available with less row cleaner option.

Improved pneumatic downforce system

Pneumatic downforce provides convenient, simple adjustment of downforce for the whole planter from one location. The amount of downforce applied is infinitely adjustable from 0 kg to 181.80 kg (0 lb to 400 lb). Pneumatic downforce provides more consistent downforce throughout the range of row-unit travel than mechanical spring downforce systems.

For model year 2011, several pneumatic downforce system improvements were implemented. Such improvements are:

9.5-mm (3/8-in.) air delivery line instead of the 6.4-mm (1/4-in.) line used on model year 2010 and older planters.
Improved air compressor assembly increased duty cycle. With this new compressor, it provides a 47 percent increase in maximum air flow delivery compared to the prior air compressor.
New pneumatic air bags with 9.5-mm (3/8-in.) air line inlets that have improved connecting points for greater durability.

Such improvements to the pneumatic downforce system will enable for faster and more precise control of row-unit downforce while planting.

SYSTEM FEATURES

Pneumatic downforce spring

Each row-unit has a single, rubber air bag located between the parallel arms. The air bags are hooked in parallel so that air can be added or released from all rows at once from one location.

Pneumatic downforce systems are available as base equipment on all 1700 Series and DB planters. The individual pneumatic downforce air bag assemblies, air compressor units, and 9.5-mm (3/8-in.) delivery lines are also available as an attachment for field conversion.

Pneumatic downforce compressor and gauge

An improved compressor is used to charge the pneumatic system. This compressor can be located on the planter frame or in the tractor cab if desired. A gauge at the compressor indicates the amount of downforce being applied.

From the factory, integral planter models with pneumatic downforce will have an improved air compressor assembly with an in-cab mounting bracket, except the 1725 16-row and 1725 Central Commodity System (CCS™ ) TR Planters will have the air compressor assembly mounted on the planter frame. For drawn planter models, the 1755, 1765, 1765NT, 1775 Front-Fold, and 1785 Drawn Planters will have the air compressor assembly installed either on the outer hitch or wing frame members when the pneumatic downforce system is installed.

MaxEmerge™ 5 row-unit

MaxEmerge 5 with 56-L (1.6-bu) hopper plus insecticide

MaxEmerge 5 with mini hopper on CCS™ machines only

The MaxEmerge family of row-units have never seen a more versatile and efficient design until the MaxEmerge 5. The 5-family row-units improve productivity, increase uptime and lower the cost of ownership like never before.

The MaxEmerge 5 row-unit was designed for improved performance and serviceability.

Serviceability and changing crops has always been a focus of downtime and potential seed loss. MaxEmerge XP row-units (shown on the left) are designed with the meter and hopper as one component. The frame covers the meter so that it cannot be accessed. Cleanout of excess seed requires the operator to take the entire hopper off of the row-unit and to turn it upside down. The MaxEmerge 5 meter (shown on the right) is accessible without having to remove the box. The MaxEmerge 5 design allows large hoppers to be cleaned out the same as mini-hoppers, simply by opening the meter dome and catching the seed as it falls out. This improvement allows operators to change seed varieties easier and three times faster than it took them on the previous MaxEmerge XP units and provides more uptime during the tight planting window.

MaxEmerge™ 5 vacuum seed meter

The vacuum meter system gently pulls and holds individual seeds to the holes of the seed disk for population control and spacing accuracy, equaling better crop stands and profit. Vacuum seed meters can plant a wide variety of crops and seed types by simply changing seed disks and adjusting vacuum level. Vacuum seed meters are available for planters with MaxEmerge 5 row-units.

Additional features of the vacuum seed meter include:

One moving component (the seed metering disk) for minimum maintenance requirements
Meter located at each row-unit for accurate seed delivery
Good hopper seed flow characteristics for longer operating time per hopper fill
Low airflow in meter so seed treatments are not removed

Pro-Series™ seed pool

MaxEmerge 5 seed pool

The MaxEmerge 5 meter shape has also been redesigned for better seed flow. The mini-hopper design allows the planter to successfully operate on side hills up to 14 degrees.

VACUUM METER HUB AND LATCHING HANDLE

MaxEmerge 5 vacuum meter with disk

Both the MaxEmerge 5 vacuum meters are equipped with a heavy-duty hub spring and disk latching handle. The spring ensures the seed disk stays properly positioned when operating flat-style seed disks and higher vacuum levels. Proper seed disk positioning means repeatable seed singulation, time after time. The disk-latching handle is designed for easy operation and effortless seed disk changeover. The hub is also machined to tight tolerances to further ensure alignment of metering components.

OPERATING CHARACTERISTICS OF VACUUM SEED METER

Operating speed with seed tube technology

The vacuum seed meter is capable of operating at faster planting speeds than mechanical meters. However, planting accuracy will be influenced by seedbed conditions and the operating characteristics of the seed meter. Rough seedbeds and fast planting speeds (above 8.9 km/h [5.5 mph]) typically deteriorate seed placement accuracies when using seed tube technology.

The chart illustrates the effect operating speed has on population when using the vacuum meter. The operating band (color area) illustrates how the vacuum meter performs in relation to the desired population (indicated by horizontal line). The width of the band is due to various sizes and shapes of seeds and planting rate variations.

When operating on slopes above 15 degrees, increased or decreased population may result. To minimize this effect, reduce speed and consider using a flat style seed disk with increased vacuum level.

VACUUM METER SEED DISKS

The ProMAX 40 Flat Disk: The flat-disk planting solution field-proven to work since 1991

The design of the ProMAX 40 Flat Disk position allows seed to be released from the optimum position above the seed tube. The flush-face seed tube allows the seed to drop uninterrupted through the tube.

The ProMAX 40 Flat Disk utilizes flat holes and a higher vacuum level to ensure every hole is populated with a seed. A double eliminator gently removes multiple seeds at each hole for precise population control. A knockout wheel makes certain that each hole is clear of any debris after the seed is released from the disk.

Flat-style and cell seed disks shown

The unique cell disk design allows planting a variety of seed sizes without any additional parts or individual meter adjustments. Another advantage of cell-type seed disks is the lower vacuum requirement compared to flat-style seed disks. Lower vacuum levels mean less hydraulic demand from the tractor. Most planting conditions call for a flat disk, if you are limited in hydraulic capacity, cell disks are recommended.

DOUBLE ELIMINATOR

For difficult to singulate seeds, a flat seed disk and double eliminator is a viable alternative to traditional cell-type seed disks. By design, a flat seed disk requires higher levels of vacuum than a cell-type disk because there is no pocket or cell to hold the seed. The higher vacuum level will pull more than one seed to the holes in the seed disk. The double eliminator is set to cover a portion of the hole in the seed disk and is the mechanism to knock multiple seeds away as the disk rotates.

Double eliminators are required with flat-type seed disks only and should not be used with cell-type seed disks. The knockout wheel is also recommended in conjunction with the double eliminator and flat seed disk to ensure seed is ejected from the disk.

Flat and celled type seed metering disks are available to allow planting a wide variety of seed types.

Corn (field, popcorn or sweet corn)
Soybeans
Cotton
Sorghum
Sugar beets
Sunflowers
Edible beans/peas
Peanuts
Melons, squash, cucumbers

Mini-hopper row-units, which are used only with the Central Commodity System (CCS™) are compatible only with crops that the CCS is approved to plant.

Corn
Popcorn
Sweet corn
Soybeans
Sunflowers
Sorghum
Cotton

NOTE: Due to small seed size and low planting populations, sugar beets can be planted with mini-hopper style meters by adding hopper extensions and not using the CCS tank. These hopper extensions can also be used for planting test plots.

Hopper shutoff

Also, to help with meter access of 56-L and 106-L (1.6-bu and 3-bu) hoppers the hopper shutoff feature was added. With the shutoff engaged, the meter cover can be opened without first having to remove all of the seeds from the hopper. Lever down, the seed flow is on, lever horizontal and the seed flow is off.

MaxEmerge 5 mini-hopper

There are significant changes to the MaxEmerge 5 Mini-Hopper. One update is the straight feed from the Central Commodity System (CCS™) hose to the mini-hopper to ensure a continuous free flow of seeds. This design change reduces the potential for plugging issues with larger seed size and the use of seed treatments. By drawing air from the CCS tank the vacuum source is now cleaner, preventing meter debris buildup.

Ductile iron-cast shank

Ductile iron casting is a unique high-tech process that produces a single-piece row-unit shank this enables alignment from the seed trench to the closing wheel.

The row-unit head is also designed using the ductile iron-casting process. The row-unit head provides the mating joints between the row-unit parallel arms and the row-unit shank. It is also the upper attaching point for the seed meter and seed hopper.

Ductile iron casting of the row-unit shank and head assembly provides a row-unit that is 25 percent stronger than other competitive welded row-units.

One of the trademark capabilities of John Deere planters has always been the ability of the Tru-Vee™ openers to provide an ideal seed furrow.

The thickness of the Tru-Vee opener blade is 3.5 mm (0.14 in.) this blade thickness will provide extended wear life.

The MaxEmerge 5 row-unit also provides better Tru-Vee opener bearings for longer life. The double-row ball bearing provides up to three times the wear life as the single-row bearing.

Depth adjustment T-handle

John Deere planters provide consistent seed depth control in all field conditions. Depth control is a function of the Tru-Vee openers, the downforce system, and the gauge wheel assembly.

The gauge wheel itself is made of durable nylon composition with a concave profile. This profile gently firms the sides of the seed furrow, ensuring a well-defined trench. The shape reduces rocks and residue being picked up and thrown onto the drive chains and row-units, and helps to prevent rooster tailing of soil.

The bolt-through design utilizes an open bearing in the gauge wheel that allows an attaching bolt to pass through the wheel to the threaded hole in the gauge wheel arm. This simple bolt-through design provides for a positive attachment of the gauge wheel to the gauge wheel arm and allows quick removal of the gauge wheel for service.

Adjustability of the row-unit is critical to good performance. More available downforce options than any row unit in the industry

Adjustable heavy-duty downforce, four settings, 0 kg (0 lb), 57 kg (125 lb), 113 kg (250 lb), and 181 kg (400 lb) of downforce
Pneumatic downforce, infinitely variable from 0 to 181 kg (0 to 400 lb) of downforce
Active pneumatic downforce adjusts automatically for changing ground conditions from 0 to 181 kg (0 to 400 lb) of downforce

Rubber tire closing system

Cast wheel closing system

Rubber tire closing systems are used for most conventional, minimum-till, and no-till planting conditions. The spacing between the wheels is adjustable so the closing system can meet the needs of those who want to plant small seeds at shallow depths.

The wheels can also be staggered fore and aft to enhance residue flow. Four levels of spring force are available and are easily set with the integrated T-handle adjustment. A lower force spring can be obtained from parts, if a lower amount of force is required.

Additional closing wheel options include:

Cast closing wheels, for tough-to-close conditions
Disk closing, for shallow planting depths
Closing wheel frame less wheels, for growers desiring to use aftermarket closing wheels

1725 Planter - integral stack-folding

CONVENIENT, STACK-FOLDING DESIGN COMBINED WITH RIGID OR FLEXIBLE FRAME

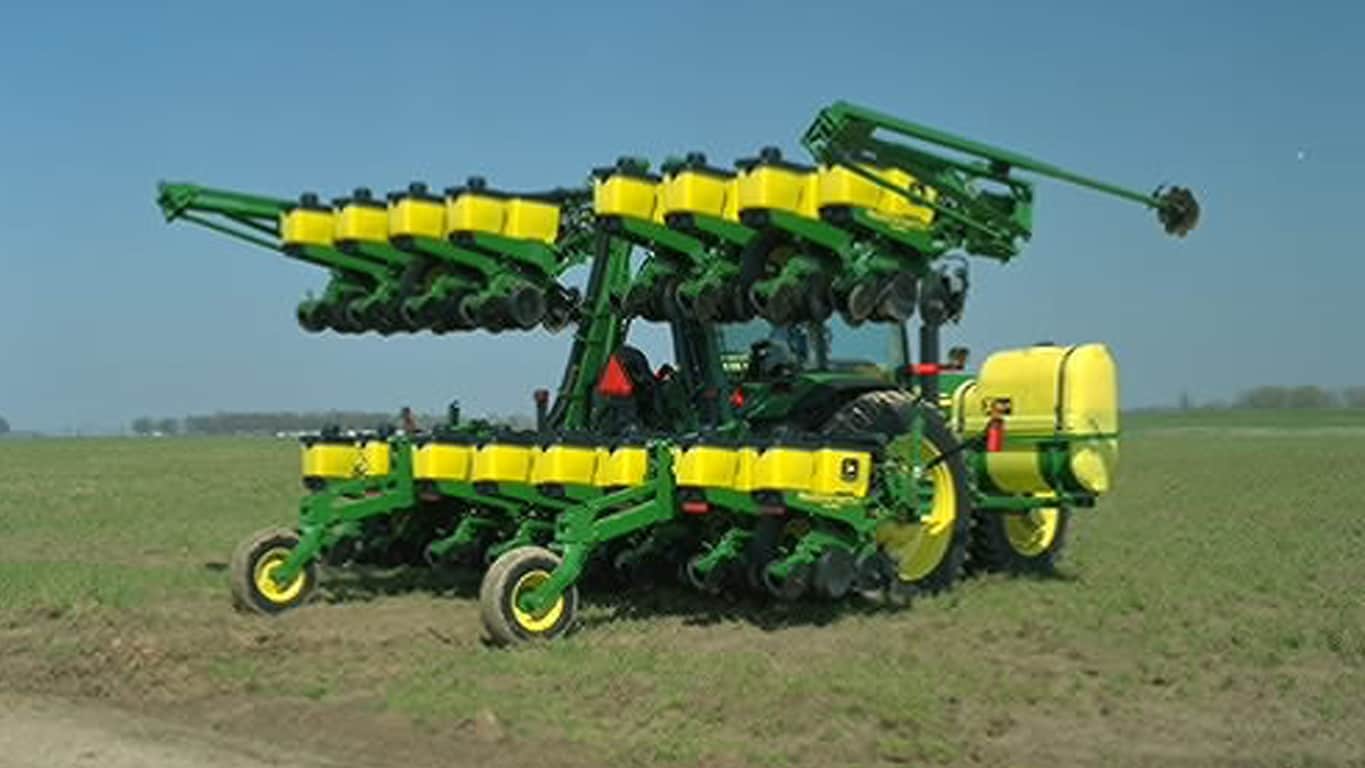

1725 16Row30 Stack-Fold Planter

The 1725 Stack-Folding design provides narrow transport capability for these integral, large-frame planters without the need to empty hoppers. 1725 Stack-Folding Planters have both rigid-frame and flex-frame configurations.

Three-section flex frames, available on 8-row wide and 12Row30 planters, flex 5 degrees up and 5 degrees down. The 16Row30 also utilizes a three-section frame that flexes 10 degrees up and 7 degrees down.

The 12-row wide planters (36-, 38-, or 40-in. spacings) are equipped for rigid operation but can be modified in the field to provide frame flex. Productivity is improved with in-cab fold and go. Stack-folding frames utilize side-fold markers or can also be ordered without markers.

Lift assist wheels may be required on 1725 Planters; check Tractor Compatibility Guide (1725 Stack-Folding Planter—Tractor Hitch Lift and Front Ballast Requirements).

The 1725 Stack-Fold Integral Planter is available in the following models:

8Row36, 8Row38, 8Row40
12Row30, 12Row36, 12Row38, 12Row40
16Row30

TRANSPORTABILITY

Model		Transport height*
	Transport width
	with markers
8-row (36 in.)	16 ft, 5 in.	11 ft, 2 in.

8Row (38, 40 in.)	17 ft, 5 in.	11 ft, 2 in.

12Row (30 in.)	20 ft, 3 in.	11 ft, 8 in.

12Row (36 in.)	19 ft, 6 in.	13 ft, 3 in.

12Row (38, 40 in.)	23 ft, 8 in.	13 ft, 3 in.

16Row (30 in.)	26 ft, 8 in.	13 ft, 2 in.

*Height measured with 18.4R-46 rear tires on tractor

SeedStar™ 2 monitoring system

Integrated innovation--that is what operators will appreciate with the SeedStar 2 monitoring system and GreenStar™ 2 (GS2) Display. An increasing number of acres combined with rising seed costs drive the need to easily understand planter functions and monitor performance. It is all about making every seed count and that is what SeedStar 2 delivers.

The SeedStar 2 monitoring system is a full-feature, color, seed population monitor used in conjunction with the GreenStar family of displays (Generation 4 CommandCenter™ controls with premium activation, GS 2630, GS 2600 Display or the entry-level GS2 1800 Display). Conveniently, SeedStar 2 planting functions are fully integrated with the full spectrum of AMS applications—guidance, coverage maps, and field documentation can be shown all on one display.

When a SeedStar 2 system is used on a planter, there is no need for a ComputerTrak™ monitor. All vital planting information is displayed in one central, easy-to-read location.

SEEDSTAR 2 FEATURES

SeedStar 2 full-screen planter run page

SeedStar 2 is a user-friendly system that has retained all the valued features of SeedStar and incorporated the next generation of enhancements. For example, on-screen, color indicators shows drive engagement/disengagement status. In addition, three color (black, orange, or red) planter at a glance bars visually inform the operator of row population status.

Not only does SeedStar 2 incorporate the use of color, it also utilizes an intuitive icon and folder based operator interface. Icons are easy to understand across many languages and reduce the need for text. Icons for planter main run page, planter setup, seed/crop setup, totals, and diagnostics are located in the soft-key region of the display. Setup is performed by selecting the appropriate icon and then choosing the tabs to enter/select information.

The SeedStar 2 monitor offers all of the features and functionality of the ComputerTrak™ 350 monitor and much more. SeedStar 2 monitors the following planter functions:

Row population/spacing
Row failure
Average population (entire planter and by variable-rate drive [VRD] motor section)
Vacuum level
Fertilizer pressure
Acre counter
Total acreage
Tractor speed

In addition, planter operational information is available within the SeedStar 2 monitor system. Such operational information includes population charts, seed disk vacuum settings, and setting recommendations for the piston pump liquid fertilizer system.

All SeedStar 2 systems have the capability, through a single controller, to perform both the seed monitoring and variable rate drive functions. SeedStar 2 monitoring is required for VRD population control. Even though the planter may not be equipped with SeedStar 2 VRD, the SeedStar 2 monitoring system is available and will allow for future installation of VRD.

SEEDSTAR 2 ENHANCEMENTS

SeedStar 2 half-screen planter run page

SeedStar 2 showing half-width disconnect status

The SeedStar 2 enhanced planter features include:

GreenStar 2 display integration. Eliminates the need to operate the GS2 2600 Display in the original GreenStar monitor mode or the use of dual displays.
User-friendly, intuitive icons
Half- or full-screen run page
On-screen, color drive status; a quick glance at the display tells the operator if the half-width disconnect is engaged or disengaged.
Three-color planter-at-a-glance population bar. A black bar indicates that population is close to target and within established limits; orange shows the population is above/below the alarm set point; red signals the population is out of operating range or is not planting.
Three-piece, color VRD indicator. Each piece of the VRD gear pie turns green when the wheel motion sensor is active, planter is lowered, and drives are engaged.

SEEDSTAR MONITORING ORIGINAL FEATURES

SeedStar 2 retains all those SeedStar features that producers value and have come to expect:

Planter at a glance. Allows operator to view relative population levels of all rows on one screen.
Automatic valve calibration. With the SeedStar VRD, this is now completed automatically. There is no longer a need to manually calibrate the hydraulic valves.
Increased population updates. SeedStar will now update population levels once a second at planter start up then approximately once every three seconds.
Mapping of actual seed rates. When combined with Field Doc™ system, actual and target seeding rates can now be mapped in Apex™ software.
Reprogrammable utilizing CAN via Service ADVISOR™ diagnostics system.
Improved diagnostics/event recorder. On SeedStar VRD planters, additional diagnostic information is available, as well as an event recorder to capture system performance data at a specific point in time.
Ability to run motors at different population levels. On SeedStar VRD, operators running multiple motor systems can run each motor at a different speed, allowing different population levels within a planter.
User-configurable high fertilizer pressure alarm. Allows the operator to be warned when fertilizer pressure reaches a specific level.
Automatic quick-start for SeedStar VRD. No longer does the operator need to press the quick-start button on end row turns to resume planting.
Automatic tractor speed source selection. When equipped with an 8000/9000 Series Tractor, the system selects the radar speed or allows for manual speed input selection.

17251725 CCS stack-fold Planter

Overview

Features

RowCommand™ individual-row control system

ROWCOMMAND CONTROLS SEED OUTPUT

COMPONENTS AND OPERATION

INTEGRATED SWATH CONTROL PRO™

SYSTEM REQUIREMENTS

ROWCOMMAND ORDERING INFORMATION

PRO-SHAFT DRIVE ROWCOMMAND PLANTERS

CHAIN DRIVE ROWCOMMAND PLANTERS

CHAIN DRIVE ROWCOMMAND AND HEAVY-DUTY DOWNFORCE

CHAIN-DRIVE ROWCOMMAND WITH CORN FINGER PICKUP METERS

Seed variable-rate drive

Row cleaner options to meet residue management needs

SCREW-ADJUST UNIT-MOUNTED ROW CLEANER

FLOATING ROW CLEANER WITH UNIT-MOUNTED COULTER

Improved pneumatic downforce system

SYSTEM FEATURES

MaxEmerge™ 5 row-unit

VACUUM METER HUB AND LATCHING HANDLE

OPERATING CHARACTERISTICS OF VACUUM SEED METER

VACUUM METER SEED DISKS

DOUBLE ELIMINATOR

1725 Planter - integral stack-folding

CONVENIENT, STACK-FOLDING DESIGN COMBINED WITH RIGID OR FLEXIBLE FRAME

TRANSPORTABILITY

SeedStar™ 2 monitoring system

SEEDSTAR 2 FEATURES

SEEDSTAR 2 ENHANCEMENTS

SEEDSTAR MONITORING ORIGINAL FEATURES

Maintenance and Support

YOU MAY ALSO BE INTERESTED IN...

17251725 CCS stack-fold Planter

SHARE

Overview

Features

RowCommand™ individual-row control system

ROWCOMMAND CONTROLS SEED OUTPUT

COMPONENTS AND OPERATION

INTEGRATED SWATH CONTROL PRO™

SYSTEM REQUIREMENTS

ROWCOMMAND ORDERING INFORMATION

PRO-SHAFT DRIVE ROWCOMMAND PLANTERS

CHAIN DRIVE ROWCOMMAND PLANTERS

CHAIN DRIVE ROWCOMMAND AND HEAVY-DUTY DOWNFORCE

CHAIN-DRIVE ROWCOMMAND WITH CORN FINGER PICKUP METERS

Seed variable-rate drive

Row cleaner options to meet residue management needs

SCREW-ADJUST UNIT-MOUNTED ROW CLEANER

FLOATING ROW CLEANER WITH UNIT-MOUNTED COULTER

Improved pneumatic downforce system

SYSTEM FEATURES

MaxEmerge™ 5 row-unit

VACUUM METER HUB AND LATCHING HANDLE

OPERATING CHARACTERISTICS OF VACUUM SEED METER

VACUUM METER SEED DISKS

DOUBLE ELIMINATOR

1725 Planter - integral stack-folding

CONVENIENT, STACK-FOLDING DESIGN COMBINED WITH RIGID OR FLEXIBLE FRAME

TRANSPORTABILITY

SeedStar™ 2 monitoring system

SEEDSTAR 2 FEATURES

SEEDSTAR 2 ENHANCEMENTS

SEEDSTAR MONITORING ORIGINAL FEATURES

Related Products

Maintenance and Support

YOU MAY ALSO BE INTERESTED IN...
