With just the push of a button, the boom automatically returns to the load space. Additionally, the boom can be folded into transport position and unfolded back to the working mode at the push of a button.
The TimberMatic H operating system is easy to use and visual. The precise location of stems at the logging site and the progress of the work are displayed on the map in real-time. Intelligent diagnostics take care of the machine’s performance.

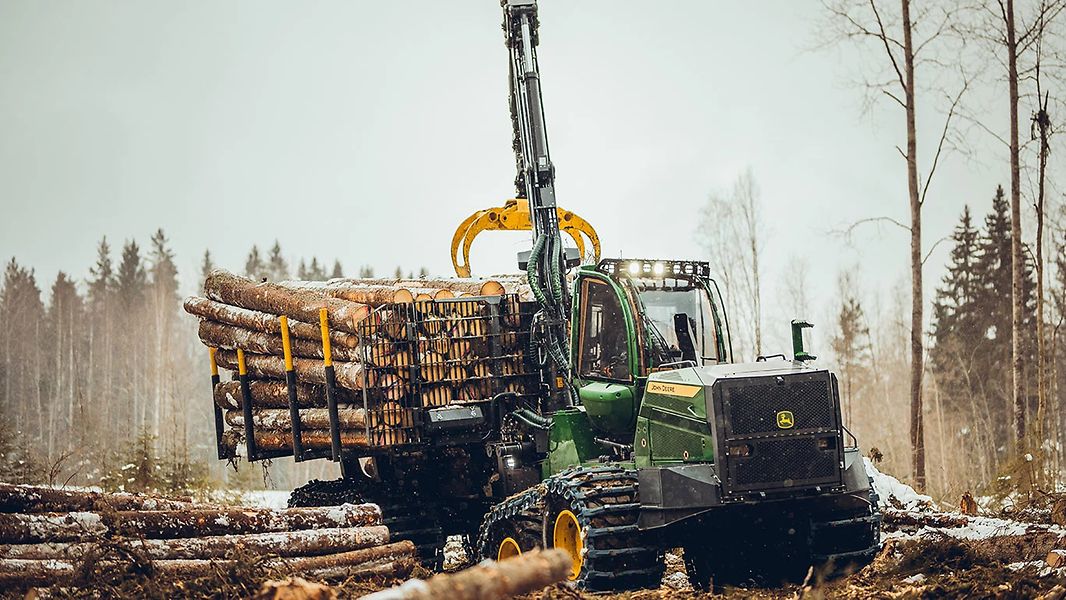

The large 8.5 m² load space means less driving and efficient transports from the logging site to the roadside. The 2510H forwarder’s twin hydraulic motor driveline enables a driving speed of up to 10 km/h in off-road gear.
| Specifications | ||||
|---|---|---|---|---|
| John Deere 2510H Biggest And Best Performing Forwarder |
| Load rating | 25 t | |||
|---|---|---|---|---|
| Tractive force | 290 kN | |||
| Power | 252 kW |
| Load Rating, Standard (kg) | 25 000 kg | |||
|---|---|---|---|---|
| Manufacturer | John Deere | |||
| Model | John Deere 6090 | |||
| Engine Speed Used For Net Peak Power (rpm) | 1900 rpm | |||
| Net Peak Power At Engine Speed Power (kW) | 252 kW | |||
| Engine Speed Used For Net Peak Torque (rpm) | 1400 rpm | |||
| Net Peak Power At Engine Speed Torque (Nm) | 1550 Nm | |||
| Fuel Tank Capacity (L) | 380 |
| Short Wheelbase Length (mm) | 5700 mm | |||
|---|---|---|---|---|
| Long Wheelbase Length (mm) | 5700.0 mm6900 mm | |||
| Width from | 3200 mm | |||
| Turning Angle (degrees) | 44 degrees | |||
| Transport Height with Tires from (mm) | 3950 mm | |||
| Ground Clearance - 8 Wheel (mm) | 780 mm | |||
| Front Tires - 6-Wheel Options | 28.5" | |||
| Front Tires - 8-Wheel Options | 34" | |||
| Rear Tires Options | 26.5", 28.5" | |||
| Minimum Machine Weight With 8 Wheels (kg) | 29 800 kg |
| Type | Rotating and leveling | |||
|---|---|---|---|---|
| Rotating Angle (degrees) | 290 degrees |
| Maximum Reach Length (m) | 10.7 m | |||
|---|---|---|---|---|
| Gross Lifting Torque (kNm) | 170 kNm | |||
| Slewing Torque (kNm) | 45 kNm | |||
| Slewing Angle (degrees) | 380 degrees |
| Maximum Reach Length (m) | 10.2 m | |||
|---|---|---|---|---|
| Gross Lifting Torque (kNm) | 210 kNm | |||
| Slewing Torque (kNm) | 50 kNm | |||
| Slewing Angle (degrees) | 380 degrees |
| Tractive Force (kN) | 300 kN |
|---|
| DEF-liquid tank (L) | 28.5 l | |||
|---|---|---|---|---|
| Hydraulic Tank (L) | 225 |
| Cross-Sectional Load Space Area (㎡) | 8.5 m2 | |||
|---|---|---|---|---|
| Cross-Sectional Area VLS (㎡) | 6.5 m2 |
