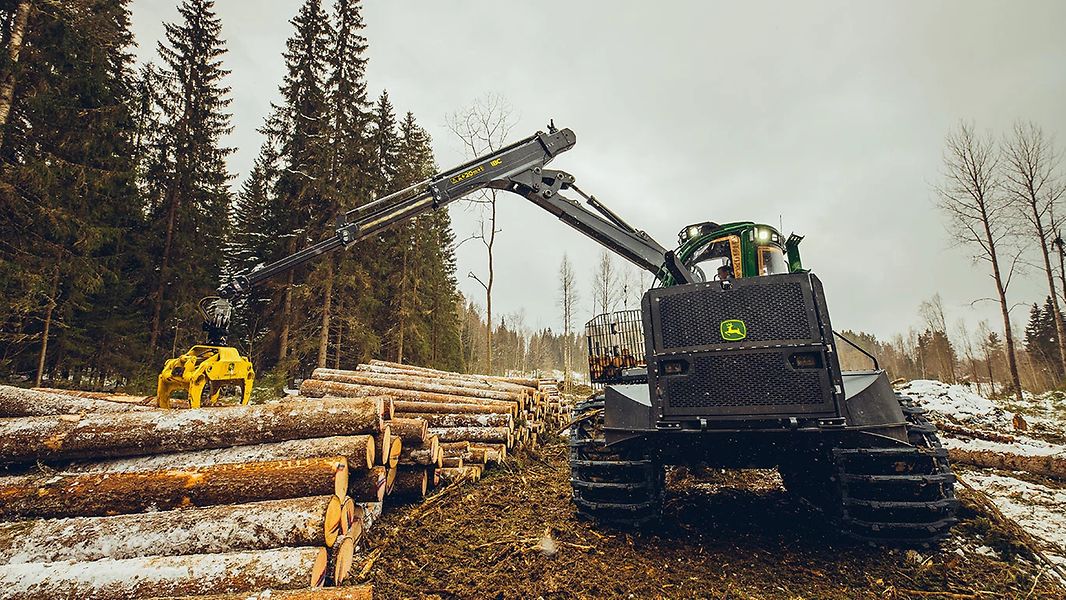

With just the push of a button, the boom automatically returns to the load space. Additionally, the boom can be folded into transport position and unfolded back to the working mode at the push of a button.
The F9 and F10 booms offer power and longer reach. The reach of the F10 boom is 10.2 meters. The F9 boom has a reach of 10.7 meters.
The TimberMatic H operating system is easy to use and visual. The precise location of stems at the logging site and the progress of the work are displayed on the map in real-time. Intelligent diagnostics take care of the machine’s performance.
| Specifications | ||||
|---|---|---|---|---|

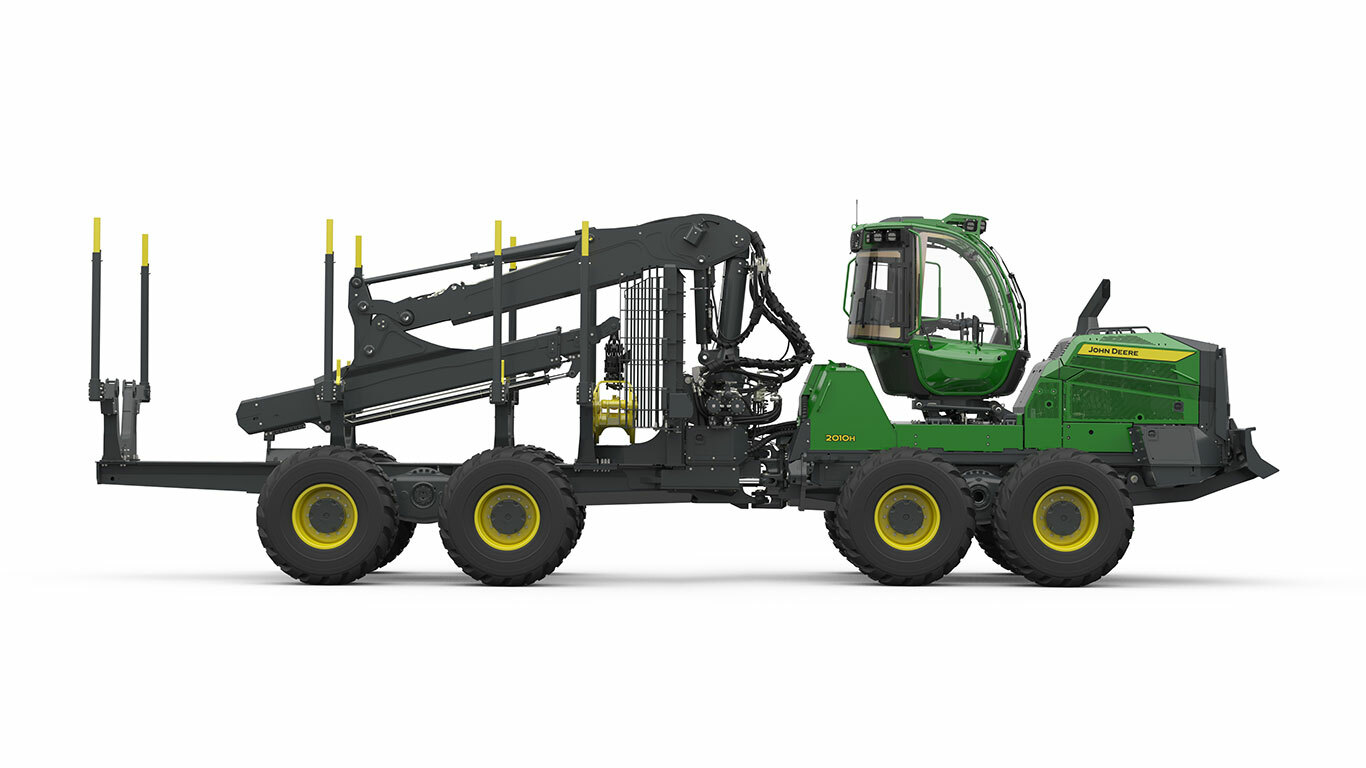

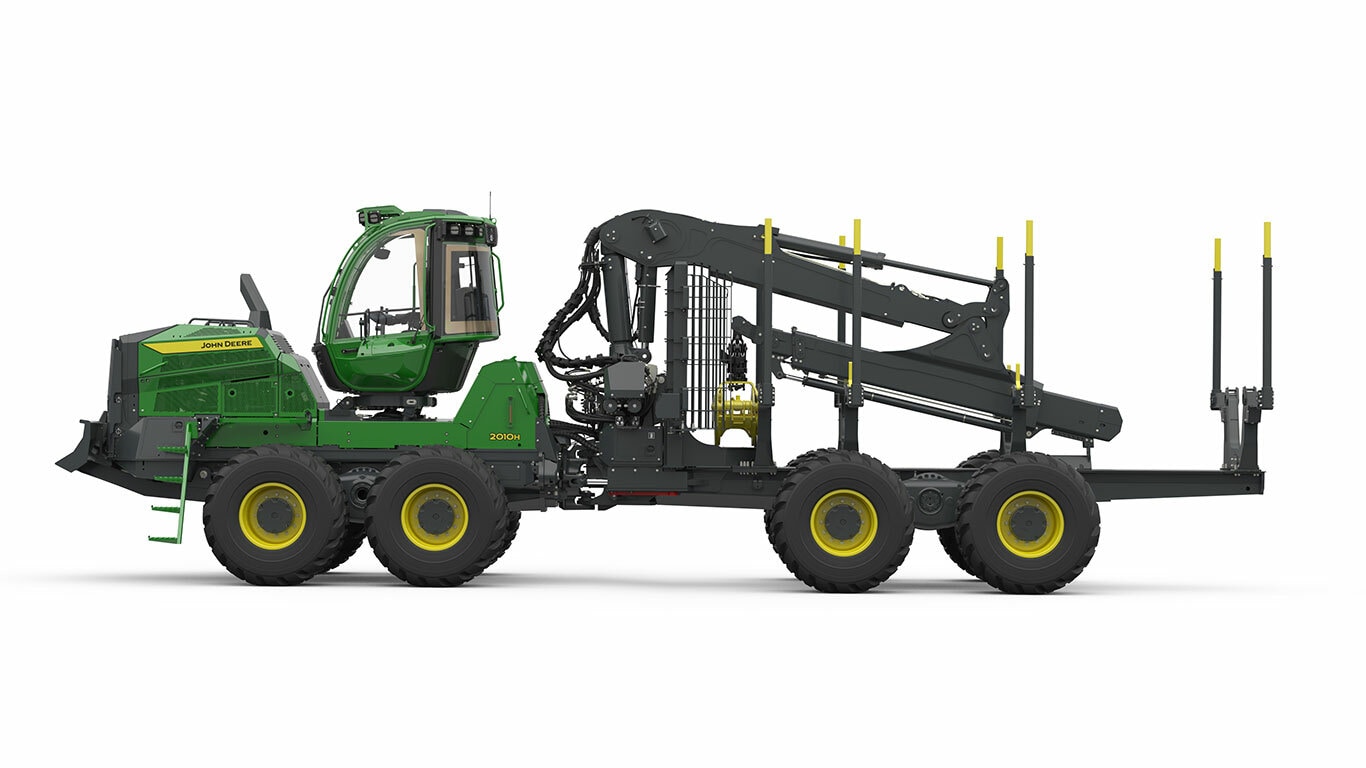

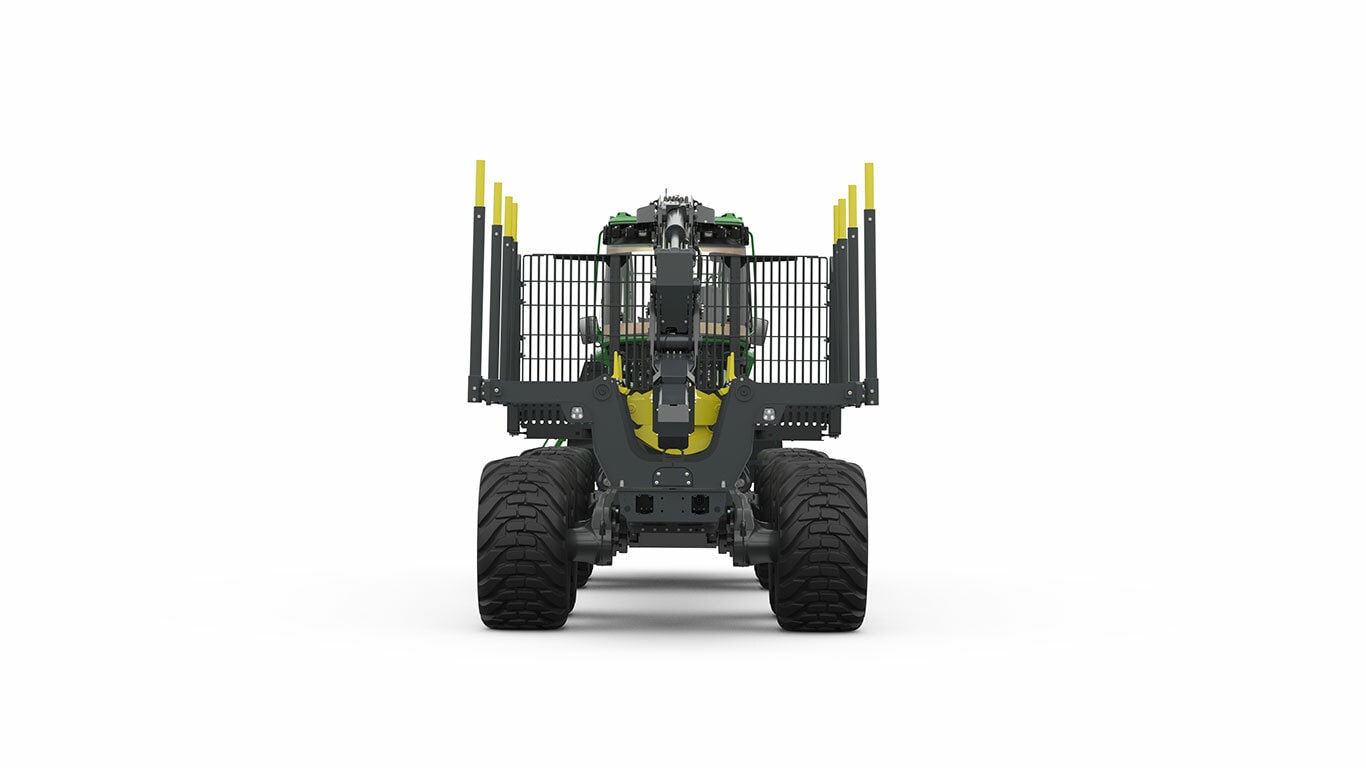

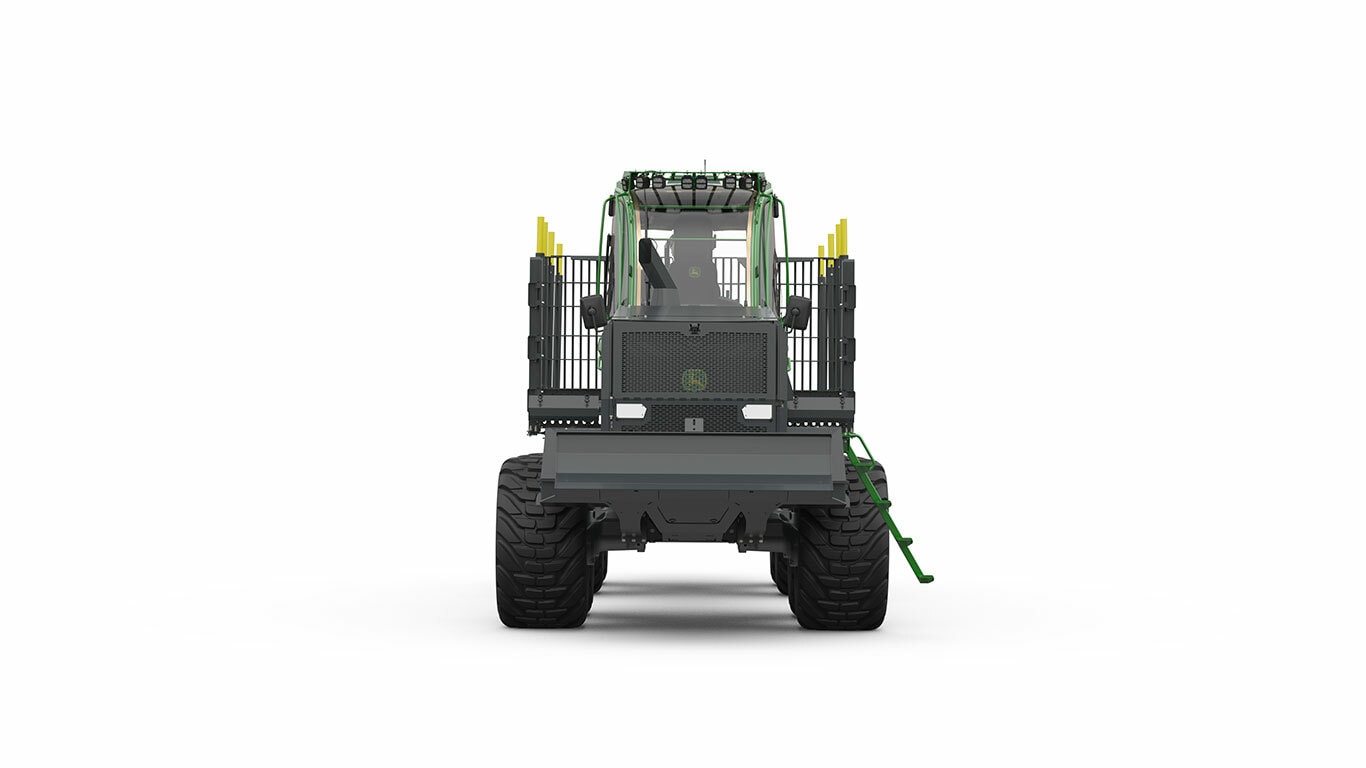

| John Deere 2010H Power for Heavy Duty Final Felling |
| Load rating | 20 t | |||
|---|---|---|---|---|
| Tractive force | 235 kN (6W) / 260 kN (8W) | |||
| Power | 220 kW |
| Load Rating, Standard (kg) | 20 000 kg | |||
|---|---|---|---|---|
| Manufacturer | John Deere | |||
| Model | John Deere 6090 | |||
| Engine Speed Used For Net Peak Power (rpm) | 1900 rpm | |||
| Net Peak Power At Engine Speed Power (kW) | 220 kW | |||
| Engine Speed Used For Net Peak Torque (rpm) | 1400 rpm | |||
| Net Peak Power At Engine Speed Torque (Nm) | 1400 Nm | |||
| Fuel Tank Capacity (L) | 380 |
| Short Wheelbase Length (mm) | 5700 mm | |||
|---|---|---|---|---|
| Long Wheelbase Length (mm) | 6900 mm | |||
| Width from | 2990 mm | |||
| Turning Angle (degrees) | 44 degrees | |||
| Transport Height with Tires from (mm) | 3950 mm | |||
| Ground Clearance - 8 Wheel (mm) | 750 mm | |||
| Front Tires - 6-Wheel Options | 34", 36.5" | |||
| Front Tires - 8-Wheel Options | 28.5" | |||
| Rear Tires Options | 26.5", 28.5" | |||
| Minimum Machine Weight With 6 Wheels (kg) | 25 500 kg | |||
| Minimum Machine Weight With 8 Wheels (kg) | 28 200 kg |
| Type | Rotating and leveling | |||
|---|---|---|---|---|
| Rotating Angle (degrees) | 290 degrees |
| Maximum Reach Length (m) | 10.7 m | |||
|---|---|---|---|---|
| Gross Lifting Torque (kNm) | 170 kNm | |||
| Slewing Torque (kNm) | 45 kNm | |||
| Slewing Angle (degrees) | 380 degrees |
| Maximum Reach Length (m) | 10.2 m | |||
|---|---|---|---|---|
| Gross Lifting Torque (kNm) | 210 kNm | |||
| Slewing Torque (kNm) | 50 kNm | |||
| Slewing Angle (degrees) | 380 degrees |
| Tractive Force (kN) | 235 kN (6W) / 260 kN (8W) / 285 (8W HD) |
|---|
| DEF-liquid tank (L) | 28.5 l | |||
|---|---|---|---|---|
| Hydraulic Tank (L) | 225 |
| Cross-Sectional Load Space Area (㎡) | 7.5 m2 | |||
|---|---|---|---|---|
| Cross-Sectional Area VLS (㎡) | 6.5 m2 |
