- Peak Power: 246 kW (330 hp) @ 1,900 rpm
- Max. Boom Reach: 10.34 m
- Tractive Effort: 322 kN
With the optional IBC, operators no longer need to control each independent boom function separately. One joystick moves the boom tip horizontally, while a second guides it vertically, and IBC automatically guides the boom and cylinders accordingly.
This map-based production-planning and -tracking system allows contractors and operators alike to share real time production and location information – taking the guesswork out of effective decision-making.
With IBC, operators no longer need to control each independent boom function separately. Just control the attachment position, and IBC automatically guides the boom and cylinders accordingly. IBC also automatically controls swing speed based on the overall position of the attachment.
IBC is easily configurable to user preference, so operators can adapt their motions to the application. Individual user settings can be saved in up to eight separate profiles, to accommodate multiple skill and experience levels.

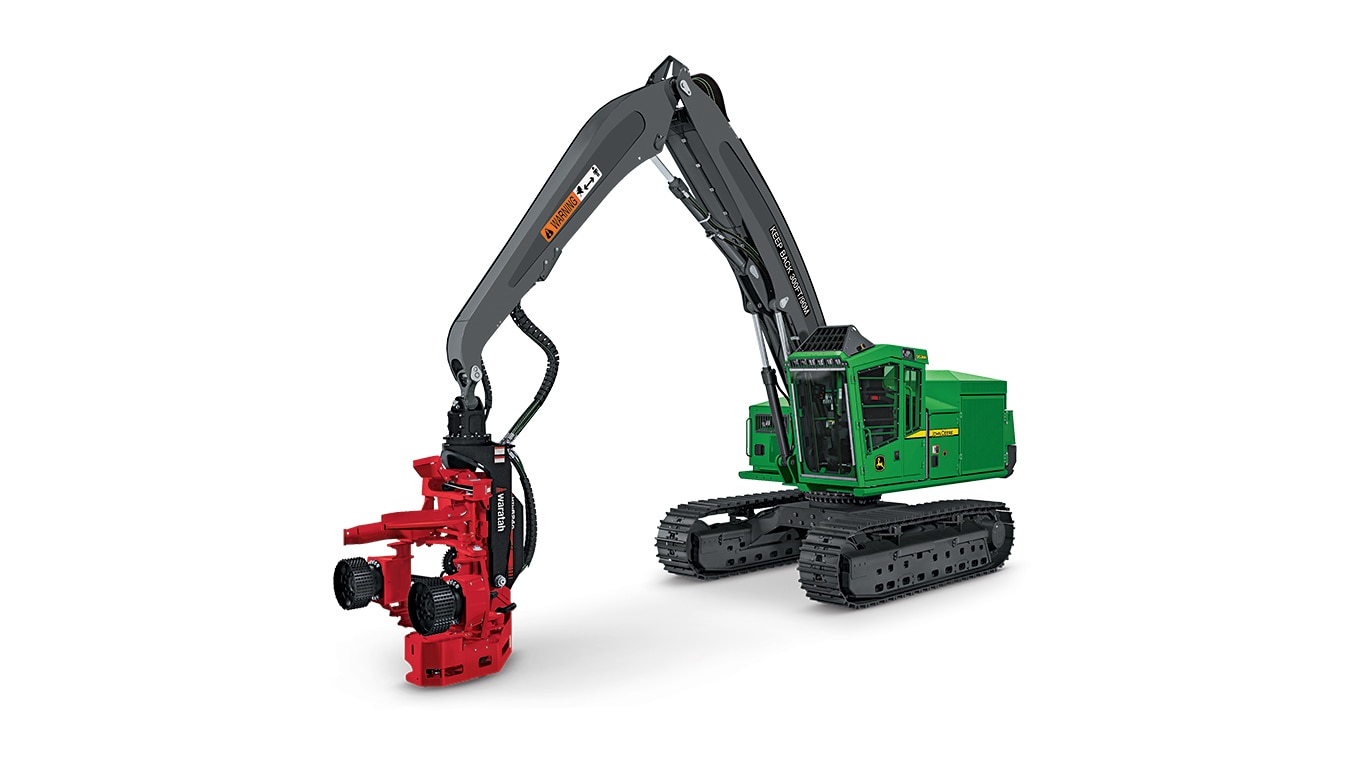

Two boom options are designed to match your harvesting needs. A powerful 9.12-meter boom accommodates large harvesting attachments in big timber, while a more versatile 10.34-meter boom with extended harvesting/processing reach is ideal for applications requiring mid-sized attachments.
A heavy-duty John Deere PowerTech™ Plus 9.0L diesel engine delivers low total fluid consumption and high dependability.
Long and wide undercarriage maximizes stability no matter the terrain.
Take the guesswork out of planning, implementing, and monitoring your logging operation. The tools of our production-planning and -tracking system expand on the core technology features that come standard in every John Deere Forestry machine to unleash a powerful new array of possibilities:
TimberMatic™ Maps is an innovative onboard software solution that helps you reimagine your jobsites. Real-time production views, optimized routes, and shared wireless connections between machines make it easier than ever before to take your forestry operation to the next level.
TimberManager™ is a web-based solution for PCs, tablets, and mobile phones that allows you to follow jobsite progress. Combined with TimberMatic Maps, this software provides complete visibility of your operation — from land harvested to specific machines — so you can streamline communication, analyze tasks, and increase productivity.
Your John Deere Forestry machine arrives from the factory equipped with a powerful set of technologies and capabilities already built in:
|Engine Manufacturer||John Deere|
|Engine Model||PowerTech Plus 6090 PSS|
|Rated Speed, rpm||1900|
|Engine Output, kW (hp)||246 (330)|
|Engine Torque, Nm||1392|
|Carrier Rollers - Each Side||2|
|Track Rollers - Each Side||9|
|Track Shoe Width, mm||610|
|Height Over Cab, mm||3550|
|Overall Track Length, mm||4900|
|Track Length On Ground, mm||3830|
|Tailswing Radius, mm||3180|
|Ground Clearance, mm||756|
|Superstructure Width, mm||3050|
|Slewing Angle, Degrees||360|
|Fuel Tank, ltr||1080|
|Number of Alternators||2|
|Alternator Output, Amp||100|
|Slew Speed, rpm||4,8|
|Travel Speed, kph||4,2|
|Reference Harvesting Head||Waratah HTH624C|
|Felling Diameter, mm||810|
|Delimbing Diameter, mm||760|
|Cutting Radius - Maximum, mm||9120|
|Cutting Radius - Minimum, mm||3680|
|Cutting Swath Horizontal, mm||5440|
|System Voltage, V||24|
|Main Pump||Axial Piston|
|Pump Flow, lt/min||532|
|Operating Weight, kg||36484|
|Weight - With Reference Head, kg||36484|
|Weight - Without Reference Head, kg||33024|
Product modules and features has been compiled for worldwide circulation with general information, pictures, and descriptions of features not available in all countries. In some countries, products and accessories may require modifications or additions to ensure compliance with local regulations. Contact your local John Deere dealer for details.
