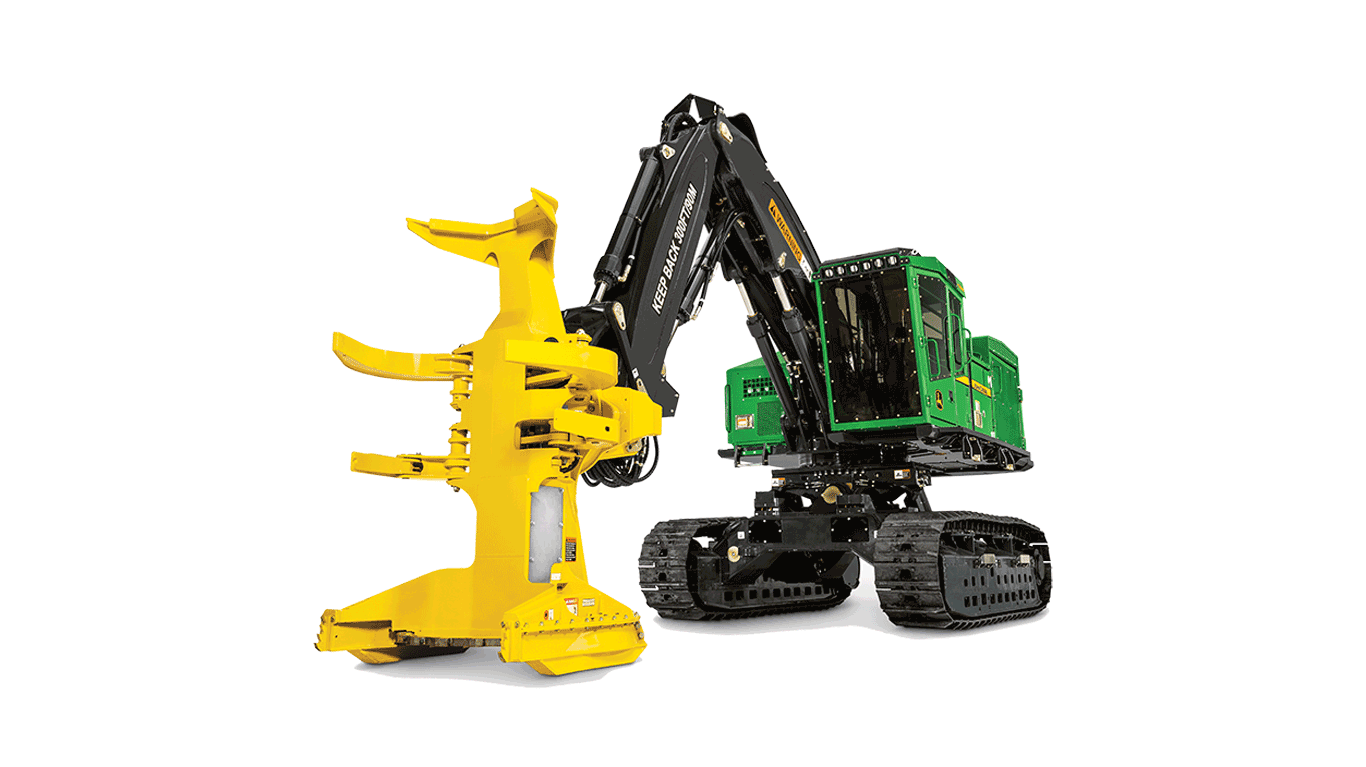

959MTracked Feller Buncher
- Wide, powerful cutting swath
- Powerful, leveling system with best in class forward tilt
- Variety of boom sets and heads
959M
Features
Features
Expand All
Collapse All
Increased cutting swath
The 900M-Series maintain the improvements introduced on the 900K-Series machines, including a 30-percent increase in cutting swath, from 3 to 4 m (10 to 13 ft.) on the standard boom.
Stability
Longer, wider undercarriage maximizes stability no matter the terrain.
Easy daily maintenance
Easy access to service components helps ensure daily checks and preventative maintenance get done on schedule. Optional undercarriage-mounted toolbox provides convenient storage for tools, additional saw bars, and other spare parts.
Optional Rapid Cycle System (RCS)
RCS can be tailored to individual skill levels and specific harvesting conditions. Multiple RCS settings can be saved according to individual operator preferences. Novices may prefer a slower, more methodical pace, while highly skilled pros may want faster response.
Specification
Specification
Expand AllCollapse All
959M Tracked Feller Buncher
DRIVELINE |
|
| Engine Manufacturer | John Deere |
| Engine Model | PowerTech Plus 6090PSS |
| Rated Speed, rpm | 1900 |
| Engine Output, kW (hp) | 246 (330) |
| Engine Torque, Nm | 1392 |
| Carrier Rollers - Each Side | 2 |
| Track Rollers - Each Side | 9 |
| Track Shoe Width, mm | 610 |
DIMENSIONS |
|
| Base Carrier Length, m | 4,9 |
| Height Over Cab, mm | 4030 |
| Overall Width, mm | 3330 |
| Track Length On Ground, mm | 3810 |
| Tailswing Radius, mm | 3180 |
| Ground Clearance, mm | 747 |
| Superstructure Width, mm | 3200 |
| Track Gauge, mm | 2720 |
| Cab Leveling tilt (Forward), Degrees | 26 |
| Cab Leveling tilt (Rear), Degrees | 14 |
| Cab Leveling tilt (Side), ± Degrees | 7 |
CAPACITIES |
|
| Fuel Tank, ltr | 1080 |
| Alternator Output, Amp | 100 x 2 |
PERFORMANCE |
|
| Travel Speed, kph | 3,6 |
| Tractive Force, kN | 373 |
| Lift Capacity - Maxi Reach, kg | 7970 |
| Reference Harvesting Head | FR24B |
| Felling Diameter, mm | 622 |
| Reference Head Saw Type | Disc |
| Reference Head Type | Felling |
| Cutting Radius - Maximum, mm | 8880 |
| Cutting Radius - Minimum, mm | 4870 |
| Cutting Swath Horizontal, mm | 4010 |
| System Voltage, V | 24 |
| Pump Type | Variable Displacement Axial Piston |
| Pump Flow, lt/min | 532 |
WEIGHTS |
|
| Operating Weight, kg | 37760 |
Smooth Boom Control
Smooth Boom Control
Further enhancing the machine operation in demanding forestry applications, John Deere adds its Smooth Boom Control (SBC) technology to its M-Series Tracked Feller Bunchers and MH-Series Tracked Harvesters.
TimberMatic Maps and TimberManager
TimberMatic Maps and TimberManager
This map-based production-planning and -tracking system allows contractors and operators alike to share real time production and location information – taking the guesswork out of effective decision-making.
Resources
Complete Support
Product modules and features has been compiled for worldwide circulation with general information, pictures, and descriptions of features not available in all countries. In some countries, products and accessories may require modifications or additions to ensure compliance with local regulations. Contact your local John Deere dealer for details.
