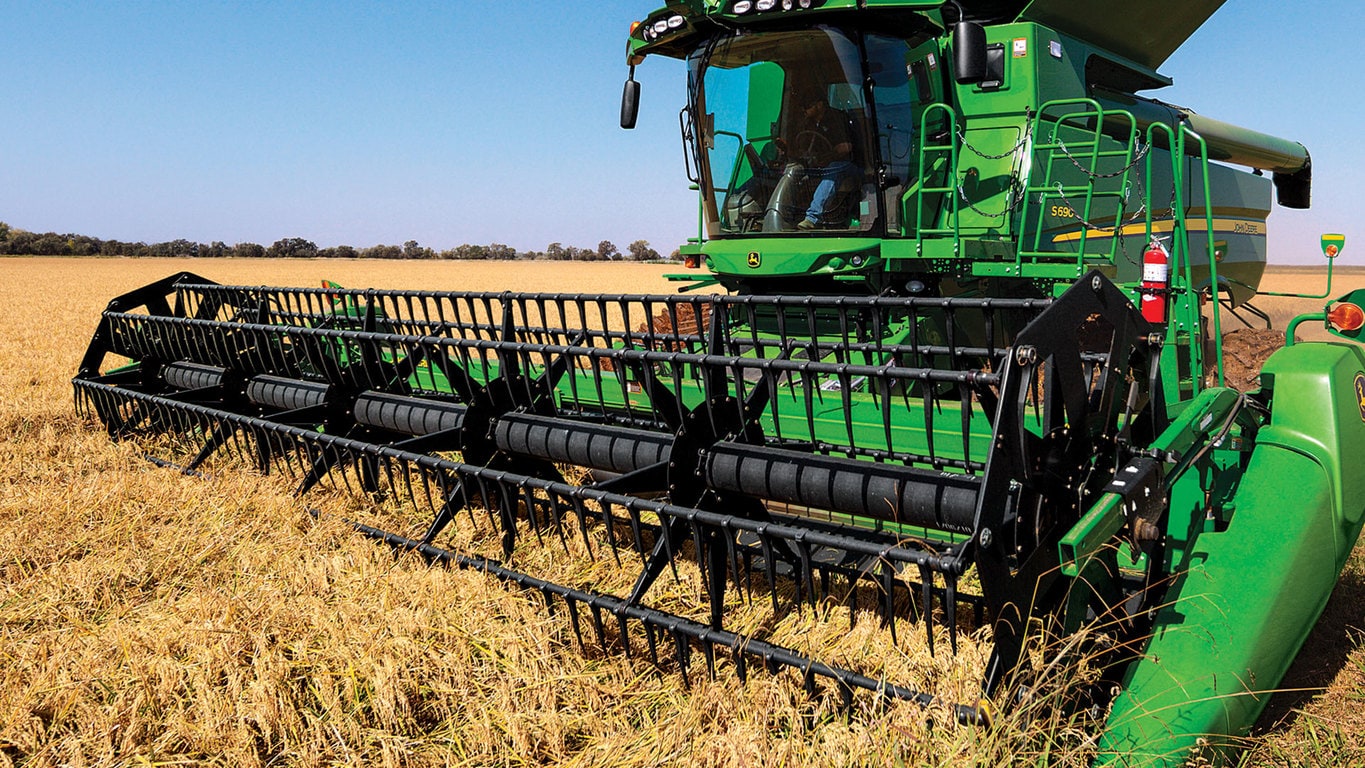

725D Draper Platform | John Deere AFME

Features

Reel resume and reverse are features on the 700D Drapers

Reel resume and reverse are features on the 700D Drapers. The combine operator can store two different reel positions with one setting for normal conditions and another for down, tangled, short, or leaning crops.

Feature benefit:

Added time savings and convenience with saved reel positions, lowering operator fatigue
Increased harvest efficiency through a reel-reverse feature which reverses the reel in conjunction with the center feed drum and belt to back outplugs

Draper drum

Draper reel

Takes one person a few minutes to convert draper from field to transport without use of tools

The 730D, 735D, and 740D Draper models can be equipped with an integrated, slow-speed transport system.

John Deere value:

Need for a header trailer is eliminated due to dual-front dolly wheel tires with an extendable tongue and two-gauge wheel tires that can carry the complete weight of the draper when in transport
Road transport is quicker and easier because one person can convert the draper from field to transport mode in a few minutes without the use of tools

THEORY OF OPERATION

In field mode, the dual wheels become the left- and right-hand gauge wheels. For transport, the left-hand dual-dolly wheels support one side of the draper frame and the right-hand dual wheels are repositioned to support the right-hand end of the frame.

The transport package includes warning lights, which can be plugged into a seven-way power source for road transport with a 32.2-km/h (20-mph) speed limit for farm equipment transport.

Dual-wheel arm and single-wheel arm assembly

Slow-speed transport - rear wheels

NOTE: The 730D, 735D, and 740D Drapers are equipped with two ST215/75R14 gauge wheel tires as base equipment and four ST215/75R14 gauge wheels with the low-speed transport option.

Double-cut knife system produces a cleaner cut

All John Deere 700D Drapers include a double-cut knife which features a hydraulic tilt that is controlled from inside the cab. All 10.6-m (35-ft) and 12.1-m (40-ft) draper cutterbars have knifeback reinforcement straps to strengthen the knifeback.

Feature benefit:

Maximized productivity through longer stroke of knife section provides a faster, cleaner, and smoother cut, which allows operators to harvest at faster ground speeds
Productivity is maximized in tough conditions through a reinforced knifeback that strengthens the cutterbar
Reduced cost of operation and increased wear life with hardened sickle sections and unique boron treatment
Hydraulic tilt optimizes the cutterbar angle for varying conditions, extending the harvest day and providing the lowest-possible cut height

Double-cut cutterbar system

Double-cut rock guard

FUNCTIONALITY

The 100-mm (4-in.) cutting action produces a cleaner cut versus the tearing effect of shorter-stroke cutting systems. Knife hold-downs are easily adjusted to help maintain harvesting performance.

Tilt cylinder

The cutterbar hydraulic tilt adjusts a full 8 degrees while maintaining excellent visibility to the cutterbar throughout the tilt range. For improved ease of use, the optional advanced hydro handle can be configured to control the platform tilt.

Draper feeding option for the 700D

A draper feeding option is available for model year 2018 that will be offered for the full 700D Rigid Draper lineup. This option code will include larger top crop augers with the necessary hydraulic components and mounting hardware as well as an improved seal kit to keep the grain in the draper and not left on the ground.

Feature benefit:

Smoother feeding in tough crop conditions from a 50 percent increase in top crop auger diameter
Increased performance in tough feeding crops with twice the torque on top crop auger motors
45 percent reduced center-feed section losses

Functionality:

The top crop auger has been increased in size from 304.8 mm to 457.2 mm (12 in. to 18 in.) with deeper auger flighting to give increased control in bushy crop conditions. This results in even feeding to the center feed drum, which creates a smooth transition to the feederhouse. The seal kit for the center feed section has added rubber seals on both sides of the center feed drum, preventing losses from grain falling outside of the center feed drum.

Large, center feed drum improves feeding of crop into combine feederhouse

The center feed drum is designed for efficient, consistent feeding of the crop into the combine feederhouse. A feature for 700D Draper Platforms is a feed drum retractable auger finger to improve crop feeding at the corners of the feed drum.

Feature benefit:

406-mm (16-in.) diameter feed drum significantly improves feeding of the crop into the combine feederhouse
Strategic location improves crop handling and capacity, increasing productivity in high-volume crops such as irrigated wheat, barley, or canola
Combine performance is improved due to retractable fingers that enable smoother feeding
Capacity increase in tough conditions by 20 percent due to an upgraded center feed section slip clutch

Center feed drum

Feed drum retractable auger finger

Functionality:

The feed drum protrudes forward from the draper back sheets, improving the crop handoff from the draper side belts. An increase in slip clutch torque of the center feed drum from 1200 Nm to 1650 Nm allows for increased capacity in tough crop conditions

In some crop conditions, crop can hesitate at the corners of the feed drum but the retractable drum fingers keep the crop moving into the combine.

Dual-knife drive system is timed

Cutterbar epicyclical gearcase

Knife drive shaft

The unique dual-knife drive system is timed, creating the smoothest-possible reciprocating knife-drive system currently in the industry. The positive, reliable shaft-driven dual epicyclical in-line knife drives with built-in driveline protection, provide operators with the strongest knife-drive system.

Show More Show Less

Specifications

John Deere

725D

Draper Platform

Type

Straight line knife drive system

Length

7.8 m
25.5 ft

Knife drive\

Base single, optional dual knife (combine use only)
Base dual knife (SPW only or SPW/combine combination use)

Knife speed

490 cycles/min
1,040 spm

Cutterbar tilt

Base Hydraulic, 9 degrees tilt maximum

Number of slats

6 bat poly base
8 bat steel optional (for forage conditions)

Fingers

Nylon (steel optional, typically used in rice or forage conditions)

Diameter

1,067 mm
42 in.
For rice or forage conditions 1,371 mm
54 in.

Height control

Hydraulic\

Speed control\

Hydraulic

Reel lift

Cylinder stroke 330 mm
13 in.
Total range 391.5 mm
15.4 in.

Reel fore and aft

Cylinder stroke 359 mm
14.1 in.
Total range 620 mm
24.4 in.

Reel resume

Base

Reel reverse

Base

Operating speeds

6-54 rpm

Operating speeds (54-in. reel)

5-44 rpm

Width

0.7 L
24 oz
rubber coated polyester with V-Guide tracking
Side belts 1,016 mm
40 in
Center belts 1,397 mm
55 in.
Center belt not included with SPW configuration

Clean height

25.4 mm
1 in.

Operating speed

Side belts: variable up to 223 m/min
735 fpm
Center belts: 212 m/min
695 fpm
Center belt not included with SPW configuration

Speed control

Hydraulic from cab

Center belt reverse

Base; Center belt not included with SPW configuration

Diameter

406 mm
16 in.
Feed drum not included with SPW configuration

Feed drum fingers

Steel heavy-duty round 16 mm (0.625 in) diameter with breakaway notch and retainer

Number of fingers

Auger finger platform

Dual chevron, retracting

Finger reach

152 mm
6 in.

Drum/auger reverse

Base

Operating speed

195 rpm

Center clean out door

Base

Type

Electro-hydraulic base

Header height sensing on the ground

Base

Type	Optional hydraulic drive

Platform length

8.5 m
27.9 ft

Overall operating depth

2.4 m
7.9 ft

Transport width, field position

8.1 m
26.5 ft

Approximate weight (pickup reel)

Combine only 2,884 kg
6,359 lb
SPW only 2,284 kg
5,036 lb

Approximate weight (optional 54-in. reel)

Combine only 2,974 kg
6,556 lb
SPW only 2,374 kg
5,234 lb
