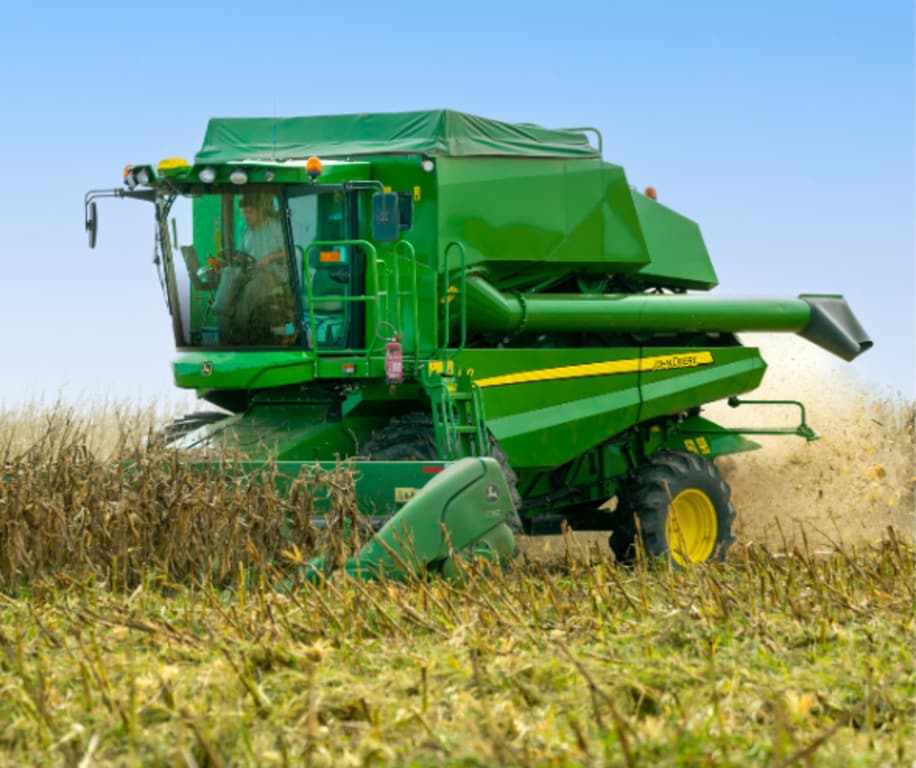

S440Combine Harvester
- John Deere PowerTech™ 6.8 L / 6-Cylinder
- Rated Power: 175kW / 238HP
- Maximum Power: 191kW / 260HP
- 3-Speed Hydrostatic Transmission
Features
Expand All
Collapse All
Standard technology and features
OPTIONAL PREMIUM TECHNOLOGY & FEATURES
GRAIN HANDLING
HEADER COMPATIBILITY
DELUXE CAB
FEEDING THRESHING SEPARATION & CLEANING
RESIDUE MANAGEMENT
Standard technology & features
Standard technology and features
- Versatile Corner Post Display
- Active Terrain Adjust
- JDLink™ Modem & Connectivity
- Lateral Tilt Feederhouse
- Moisture / Yield & Tailings Sensors
- In-Cab Chaffer & Sieve Adjustments
Optional premium technology & features
OPTIONAL PREMIUM TECHNOLOGY & FEATURES
- StarFire™ 7000 Receiver
- Gen4 4600 CommandCenter™ Display
- AutoTrack™ & Yield Mapping
- Remote Display Access & Connected Support
- Dual Front Wheels
- 4-Wheel Drive
Grain handling
GRAIN HANDLING
- Grain Tank Size: 6 500 L
- Unloading Auger Length: 5,5 m
- Unloading Rate: 65 L
- Unload whilst harvesting
Header compatibility
HEADER COMPATIBILITY
- Corn Headers 6 Row 76cm / 91cm
8 Row 76 cm
10 Row 52 cm
- Small Grains Rigid or Flex Platforms
5.8 to 7.62 m
Deluxe cab
DELUXE CAB
- Air suspended operator seat
- Tiltable steering column
- Instructor seat
- Air Con & Mini-Fridge
- Radio & Sun visors
Feeding, threshing, separation & cleaning
FEEDING THRESHING SEPARATION & CLEANING
- 65kW Fixed Speed Feederhouse with Reverser

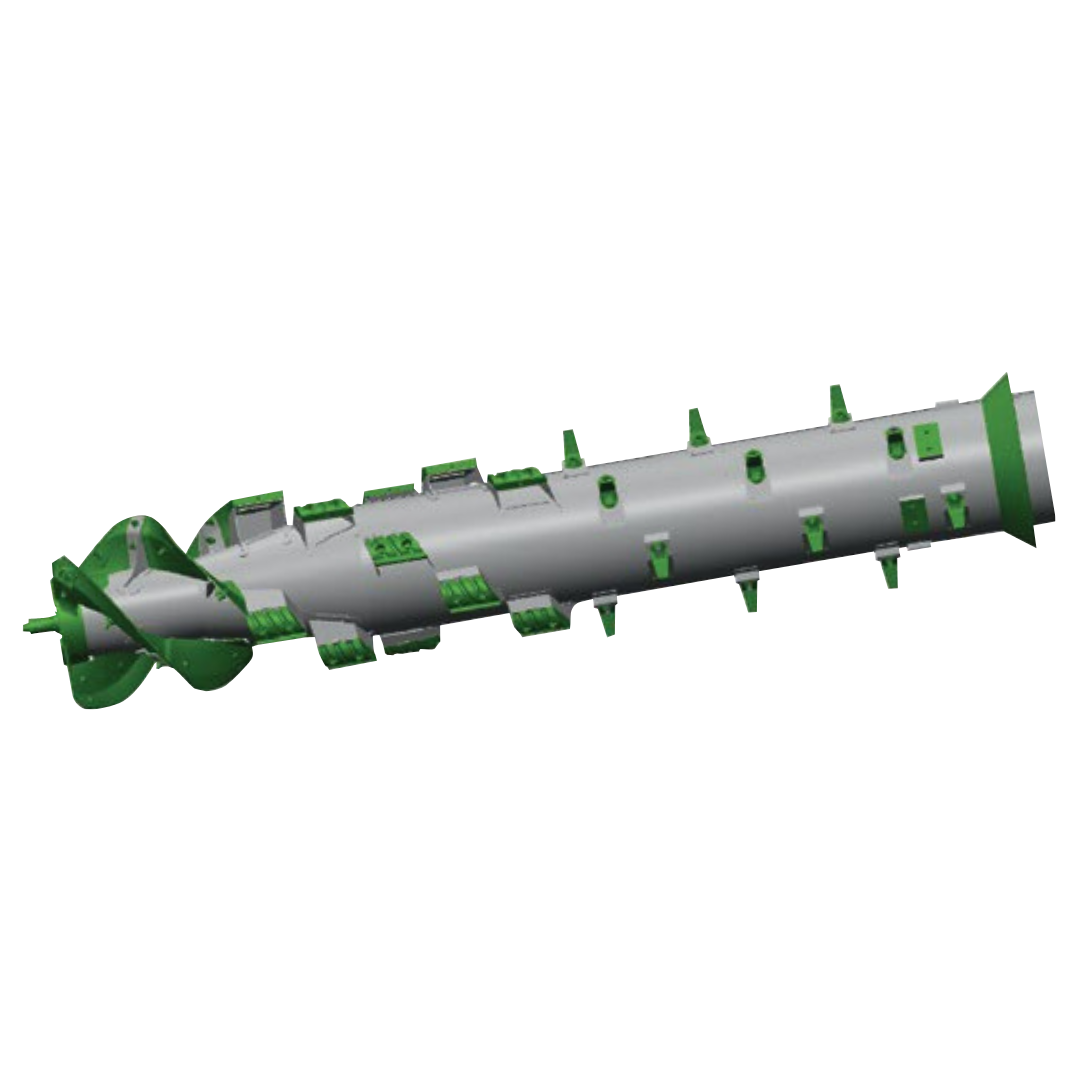

- TriStream™ Rotor (610 x 3338mm)
- Dyno Flow™ Plus Cleaning System
- Total Cleaning Shoe Area of 4.045 m2
Residue management
RESIDUE MANAGEMENT
- Dual Speed Discharge Chopping Beater with twin spreading discs
Specifications
| Specifications | ||||
|---|---|---|---|---|
| John Deere S440 Combine Harvester |
ENGINE
| Engine type | 6.8L / 6-Cylinder | |||
|---|---|---|---|---|
| Emission level | Tier 3 | |||
| Rated speed | 2.400 rpm | |||
| Rated power | 175 kW / 238 Hp | |||
| Peak power | 191 kW / 260 Hp | |||
| Transmission | 3-Speed Hydrostatic | |||
| Fuel tank capacity | 460 L |
Feeding
| Feeding Feeder house drive Fixed speed | 65 kW | |||
|---|---|---|---|---|
| Feeder house chain slat type | “U” shape | |||
| Width | 968 mm | |||
| Length | 2045 mm | |||
| Feed accelerator and stone trap (FAST) | Standard | |||
| Reversor | Standard |
Threshing/Separating
| Separator type | TriStream™ Rotor | |||
|---|---|---|---|---|
| Rotor length | 3338 mm | |||
| Rotor diameter | 610 mm | |||
| Rotor speed range | 380 - 1.210 rpm | |||
| Concave area | 0.845 m2 | |||
| Separator area | 1.259 m2 | |||
| Discharge grade area (rice version) | 0.256 m2 |
Cleaning System
| Front pan | 0.494 m2 | |||
|---|---|---|---|---|
| Front chaffer | 0.362 m2 | |||
| Chaffer | 1.714 m2 | |||
| Sieve | 1.475 m2 | |||
| Total cleaning shoe area | 4.045 m2 | |||
| Cleaning shoe fan speed range | 620 - 1.350 rpm |
Grain Handling
| Grain tank capacity | 6.500 L | |||
|---|---|---|---|---|
| Unloading auger length | 5,5 m | |||
| Unloading rate | 65 L/s |
