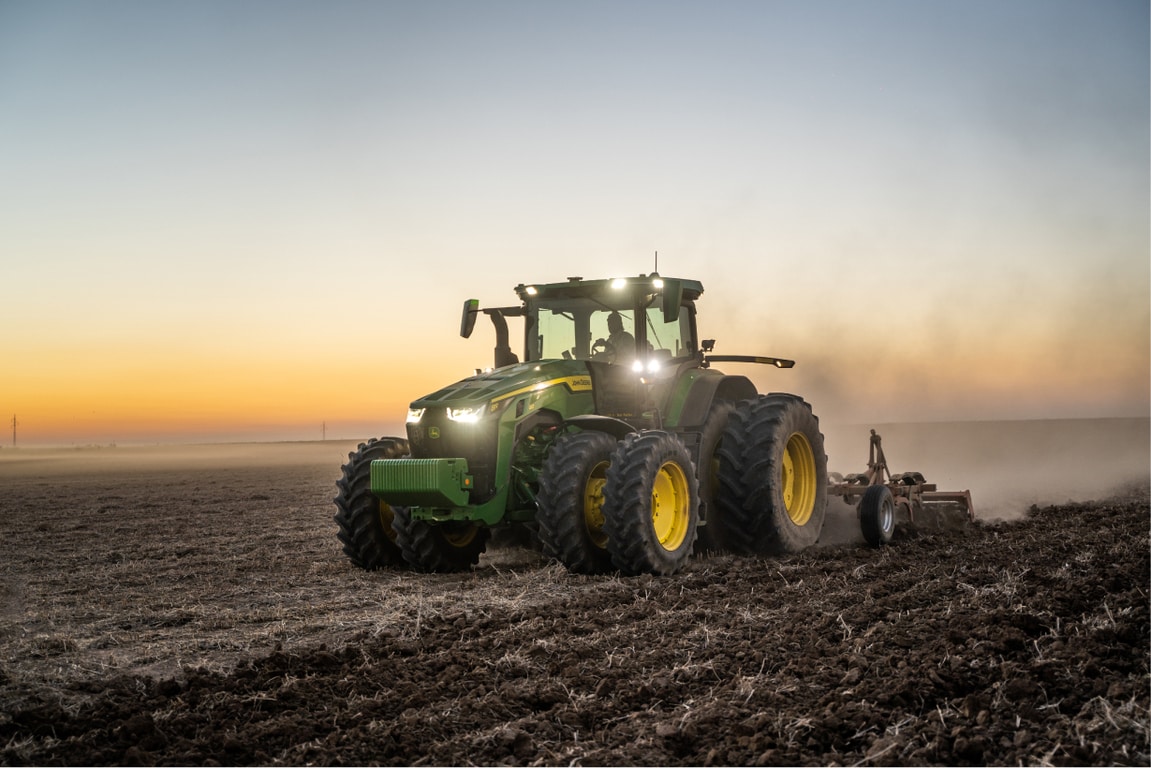

8R 410Tractor
- Engine kW (hp): 302kW (410 hp)
- Fully integrated precision ag technology
- Choice of PowerShift, e23 and AutoPower transmissions
- Independent Link Suspension (ILS™)
- Three cab and visibility packages available to customize your tractor
Specifications
| Specifications | ||||
|---|---|---|---|---|
| John Deere 8R 410 Tractor |
KEY SPECS
| Engine description | John Deere PowerTech™ 9.0 L (B20 diesel compatible) | |||
|---|---|---|---|---|
| Engine displacement | 9.0 L549 cu in. | |||
| Rated engine power | ECE-R120: 302 kW410 hp | |||
| Maximum engine power | ECE-R120: 326 kW443 hp | |||
| Rated PTO power (hp SAE) | 231 kW310 hp | |||
| Transmission type | Standard: e23™ PowerShift™ with Efficiency Manager™ 40K, 40 km/h24.9 mph Optional: e23 PowerShift with Efficiency Manager 50K, 50 km/h31 mphJohn Deere eAutoPowr™ EVT 40K, 0.05-42 km/h0.03-26 mph John Deere eAutoPowr EVT 50K, 0.05-50 km/h0.03-31 mph | |||
| Hydraulic pump rated output | Standard: 85-cc pump: 227.1 L/min60 gpm Optional: 85-cc plus 35-cc dual pump: 318 L/min84 gpm | |||
| Rear hitch category (SAE designation) | Standard: Category 4N/3 standard lift at 610 mm (24 in.) behind hitch point: 9072 kg 20,000 lb Optional: Category 4N/3 at 610 mm (24 in.) behind hitch point: 6803 kg15,000 lb | |||
| Base machine weight | ILS™/e23: 12,700 kg 28,000 lb |
ENGINE SPECIFICATIONS
| Description | John Deere PowerTech 9.0 L (B20 diesel compatible) | |||
|---|---|---|---|---|
| Engine type | In-line six, four valve | |||
| Engine family | MJDXL09.0333 | |||
| Rated speed | 2100 rpm | |||
| Aspiration | Dual turbochargers, variable geometry turbo with fixed geometry turbo in series; air-to-air aftercooling and cooled exhaust gas recirculation | |||
| Cylinders liners | Wet-sleeve | |||
| Emission level | Final Tier 4 | |||
| After treatment type | Diesel oxidation catalyst (DOC)/diesel particulate filter (DPF)/selective catalytic reduction (SCR) | |||
| Displacement | 9.0 L549 cu in. |
ENGINE PERFORMANCE
| Rated power | ECE-R120: 302 kW410 hp | |||
|---|---|---|---|---|
| Rated PTO power (hp SAE) | 231 kW310 hp | |||
| Power boost | 8 percent | |||
| Maximum engine power | ECE-R120: 326 kW443 hp | |||
| Engine peak torque | At 1600 rpm: 1851 Nm1365 lb-ft | |||
| PTO torque rise | 40 percent |
TRANSMISSION
| Type | Standard: e23 PowerShift with Efficiency Manager 40K, 40 km/h24.9 mphOptional: e23 PowerShift with Efficiency Manager 50K, 50 km/h31 mphJohn Deere eAutoPowr EVT 40K, 0.05-42 km/h0.03-26 mphJohn Deere eAutoPowr EVT 50K, 0.05-50 km/h0.03-31 mph |
|---|
HYDRAULIC SYSTEM
| Type | Closed-center, pressure/flow compensated system with load sensing | |||
|---|---|---|---|---|
| Pump rated output | Standard: 85-cc pump: 227.1 L/min60 gpmOptional: 85-cc plus 35-cc dual pump: 318 L/min84 gpm | |||
| Available flow at a single rear SCV | 1.3-cm (1/2-in.) couplers: 132 L/min35 gpm1.9-cm (3/4-in.) coupler: 159 L/min42 gpm | |||
| Available flow at front SCVs | 96 L/min25 gpm | |||
| Number of rear selective control valves (SCVs) | Standard: 1.3-cm (1/2-in.) ISO couplers: 4Optional: 1.3-cm (1/2-in.) ISO couplers: 5 and 6 available1.9-cm (3/4-in.) ISO coupler: 1 | |||
| SCV control | Electronic |
REAR HITCH
| Hitch category (SAE designation) | Standard: Category 4N/3 standard lift at 610 mm (24 in.) behind hitch point: 9072 kg20,000 lbOptional: Category 4N/3 at 610 mm (24 in.) behind hitch point: 6803 kg15,000 lb | |||
|---|---|---|---|---|
| Maximum lift capacity behind lift points | Standard (at 610-mm [24-in.] behind hitch point): 12,124 kg26,729 lb | |||
| Sensing type | Electrohydraulic | |||
| Rear axle differential lock | Electrohydraulic |
DRAWBAR
| Drawbar category | Standard: Category 4Optional: Category 4 with heavy-duty support | |||
|---|---|---|---|---|
| Maximum vertical load | Dependent on drawbar position: 1837 to 2700 kg4050 to 6000 lbOptional: 2,245 kg4,950 lb4,990 kg11,000 lb |
REAR POWER TAKE-OFF (PTO)
| Type | Independent Standard: 44 mm (1.75 in.) 20-spline, 1,000 rpm Optional: 44 mm (1.75 in.) 20-spline, 1,000 rpm/1,000E rpm | |||
|---|---|---|---|---|
| Engine rpm (at rated PTO speeds) | e23 PowerShift: 1,000 PTO rpm at 1,995 engine rpm, 1,000 ECO PTO at 1,590 engine rpm, 540 PTO rpm at 1,810 engine rpm | |||
| Multispeed PTO option availability | Available: 45-mm (1.75-in.), 1000-rpm and 1000E economy rpm PTO, in-cab shiftable | |||
| PTO actuation | Electrohydraulic with adjustable modulation |
FRONT HITCH
| Category | Category 3N | |||
|---|---|---|---|---|
| Standard lift capacity | Category 3N ground-engaging front hitch: 5200 kg11,464 lb | |||
| Front power take-off (PTO) | 44 mm (1.75 in.) 20 spline, 1000 rpm35 mm (1.375 in.) 21 spline, 1000 rpm35 mm (1.375 in.) 6 spline, 1000 rpm (available dependent on location) | |||
| PTO speed | 1,000 PTO rpm at 2000 engine rpm |
REAR AXLE
| Type | Standard: Rack-and-pinion, double flat, or flange axlesOptional: short, double flat axle with single taper hub: Diameter: 120 x 2550 mm4.72 x 100.4 in.Long, double flat axle with single taper hub: Diameter: 120 x 3010 mm4.72 x 118.5 in. | |||
|---|---|---|---|---|
| Final drive type | Inboard planetary three pinion | |||
| Rear differential lock | Full-locking electrohydraulic |
FRONT AXLE
| Type | Standard: ILS Optional: 1500 Series MFWD | |||
|---|---|---|---|---|
| Front axle differential lock | 1500 Series MFWD: Full-locking electrohydraulic ILS: Full-locking electrohydraulic |
TIRES
| Wheel tread range | 1500 Series MFWD: 1524-3657 mm60-144 in.ILS: 1524-3657 mm | |||
|---|---|---|---|---|
| Turning radius without brakes | 1500 with 420/850R34 Group 43 tires at 182.9-cm (72-in.) spacing: 5.71 m18.7 ftILS with 480/70R34 Group 43 tires at 184.2-cm (72.5-in.) spacing: 6.45 m21.2 ft | |||
| Central Tire Inflation System (CTIS) | Optional |
STEERING
| Type | Standard: Hydraulic power-steering with electric pump back-upOptional: ActiveCommand Steering 2 (ACS™ 2) with electronic backup pump |
|---|
ELECTRICAL SYSTEM
| Alternator size | Standard: 200 ampOptional: 330 amp | |||
|---|---|---|---|---|
| Battery options | 12 V | |||
| Working lights | Standard: 18 halogenAvailable: 18 LED22 LED | |||
| Type of bulb in headlight (Halogen, Zenon, LED) | Standard: halogen, 65 WAvailable: LED | |||
| Total cold cranking amps | 1,850 CCA |
OPERATOR STATION
| Seat | Degree of seat swivel, left hand25 degree (angle)Degree of seat swivel, right hand40 degree (angle)Standard: air suspensionOptional: ActiveSeat™ II | |||
|---|---|---|---|---|
| Cab suspension | Optional | |||
| Instructional seat | Standard | |||
| Display | Standard: 4600 Generation 4 CommandCenter™: 25.4 cm10 in. | |||
| Radio | Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna | |||
| Inner cab volume | 3.24 m3114 cu ft | |||
| Cab glass area | 6.52 m270.18 sq ft |
DIMENSIONS
| Wheelbase | MFWD: 3,080 mm 121.3 in.ILS: 3,050 mm 120.1 in. | |||
|---|---|---|---|---|
| Overall length | 6,636 mm 261.3 in. | |||
| Drawbar clearance | 376 mm 14.8 in. | |||
| Front axle center | MFWD: 686 mm 27 in.ILS: 590 mm 23.2 in. |
WEIGHT
| Base machine weight | ILS™/e23: 12,700 kg28,000 lb | |||
|---|---|---|---|---|
| Maximum ballast level | 20,000 kg 44,100 lb | |||
| Maximum permissible weight | 20,000 kg 44,100 lb |
CAPACITIES
| Crankcase oil volume | 1500 MFWD: 27.6 L7.3 U.S. gal.ILS: 25.8 L6.8 U.S. gal. | |||
|---|---|---|---|---|
| Fuel tank | 727 L192 U.S. gal.CTIS: 651 L172 U.S. gal.EVT: 651 L | |||
| Diesel exhaust fluid (DEF) tank | 37.2 L9.8 U.S. gal. | |||
| Cooling system | 42.3 L11.2 U.S. gal.EVT: 46.9 L12.4 U.S. gal. | |||
| Transmission-hydraulic system | 1500 MFWD: 184.6 L48.8 U.S. gal.ILS: 207.2 L54.7 U.S. gal. |
SERVICEABILITY
| Interval for engine oil change | 500 hours | |||
|---|---|---|---|---|
| Interval for hydraulic/transmission oil change | 1,500 hours | |||
| Interval for engine coolant change | 6,000 hours |
LOADERS
| Loader | 700M |
|---|
PRECISION AG
| Guidance | Integrated AutoTrac™ | |||
|---|---|---|---|---|
| Telematic | JDLink™ hardware standard, activations, and Ethernet harnesses (availability dependent upon destination) | |||
| Remote diagnostics | JDLink hardware standard |
MISCELLANEOUS
| Country of manufacture | USA |
|---|
ADDITIONAL INFORMATION
| Date collected | 12 January 2022 |
|---|
