The John Deere 5D Series offers a dry-type air filter with dual filter elements ensures clean air to the engine.
High-level benefits of dry type air filter :
A specially designed piston spray jet system in the engine is providing an oil spray below the piston. This unique design system provides continuous oil spray on the piston and helps dissipate excess heat, optimizing engine operating temperature and improves engine efficiency. The optimum engine operating temperature also enhances the life of critical engine parts and reduces maintenance costs.
High-level benefits of Piston Cooling Jet
Hydrostatic power steering ensures smooth steering operation with fewer operating efforts.
High-level benefits of hydrostatic/power steering:
Power steering is a standard feature in all John Deere tractor
Collar shift gearbox ensures easy shifting of gears without any hassle. .
High-level benefits of Collar Shift Gearbox :

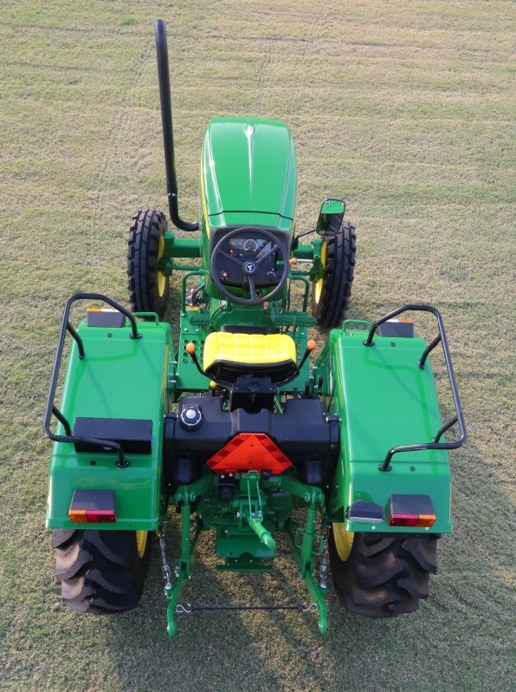

All the John Deere tractor comes with side shifting gears , which is ergonomically easy .
High level benefits of Side shift gear lever :

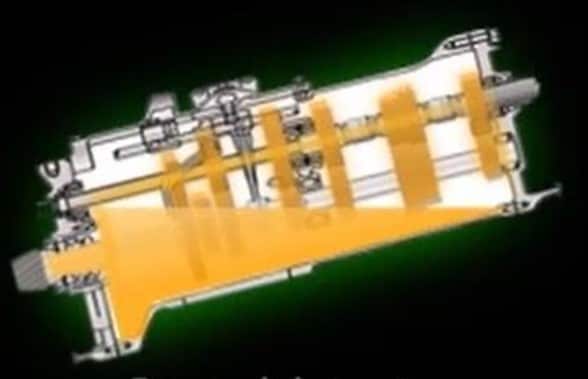

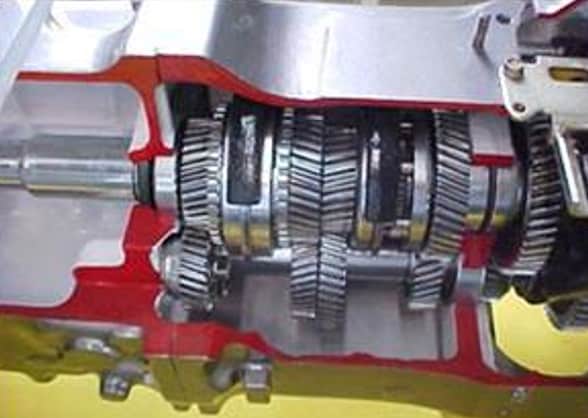

Top shaft lubrication forced lubrication Mechanism in transmission which ensures long life of transmission components.
High level benefits of Top shaft lubrication:
The John Deere Tractor has in board Oiled immersed disc brakes after planetary reduction. A higher brake disc contact area gives better braking efficiency and higher durability.
Operators can expect sure stops when the unexpected happens in the field, on the highway, or at home with mechanical wet-disc brakes.
The brake pedals can be locked together for braking action on both rear wheels when in transport, or they can be unlocked to make tighter turns in the field.
The brakes are oil cooled for maximum performance throughout the life of the tractor.
High level benefits of oil immersed disc brake :
Inboard planetary final drives distribute rear axle loads over three points for reduced stress on individual gears and shafts. Operators can expect longer life with less service, which means maintenance time is replaced with profitable production time. Inboard design also permits a wide range of wheel tread adjustments so operators can accomplish more with one tractor by custom setting tire treads to meet the specific demands of a variety of tasks.
High level benefits of Planetary gear reduction:
High level benefits of High engine torque :

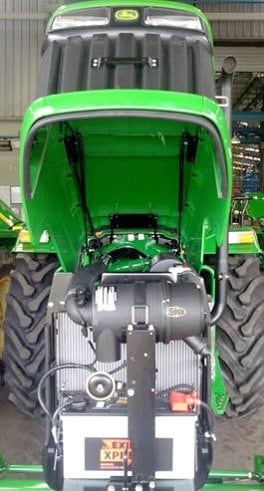

Single piece hood provides excellent visibility , better accessibility of engine parts , serviceability and engine parts
High level benefits of Single piece hood :
|Rated power (97/68EC) hp (kW) (@ 2100 engine rpm)||50 hp (36.5 kW)|
|Maximum Torque, Nm||192 N.m @ 1200 rpm|
|Torque Reserve, percentage (%)||16%|
|PTO Power hp (kW) @ 2400 engine rpm||41.5 (31.0)|
|Engine Manufacturer||John Deere Power Systems|
|Engine Type (3 Cylinder), Displacement||2.9 L PowerTech Diesel Engine|
|Fuel System Inline||Fuel Injection Pump, Direct injection|
|Air Filter||Dry Type, Dual Element|
|Cooling system||Liquid Cooled|
|TRANSMISSION||8F/4R Collar Shift Transmission|
|CLUTCH||Dual (Dry Clutch|
|REAR AXLE||3 Pinion Inboard Planetary Final Drives|
|Type||Hydrostatic Power Steering|
|Type||Hydraulically Actuated Wet Disk Brakes|
|Secondary Brake||Hand Brake|
|System Type||Open Center Hydraulic System|
|Total Flow (L/min)||36.1|
|Maximum No. of SCV's||1 x Double Acting - Rear Selective Control Valve|
|Alternator Size (A)||42 Amp|
|Battery Size (Ah)||12V, 88Ah|
|Hitch Category||CAT II with sway chains|
|Lift Capacity at the ball (kg)||1600|
|Wagon Hitch||All countries excluding Botswana, Eswatini, Namibia, South Africa|
|Drawbar||Botswana, Eswatini, Namibia, South Africa|
|Fuel Tank (L)||60|
|Ground clearance (mm), Center MFWD without front ballas||440 (TWD) / 365 (MFWD)|
|Tractor weight (kg) shipping weight not ballasted||1825 (2WD) / 1975 (MFWD)|
|Front Wheels (Radial tire technology)||6.0X16 (2WD) 8.0X18 (MFWD)|
|Front Wheels (MFWD) (Radial tire technology)||13.6X28 (2WD) 14.9X28 (MFWD)|
