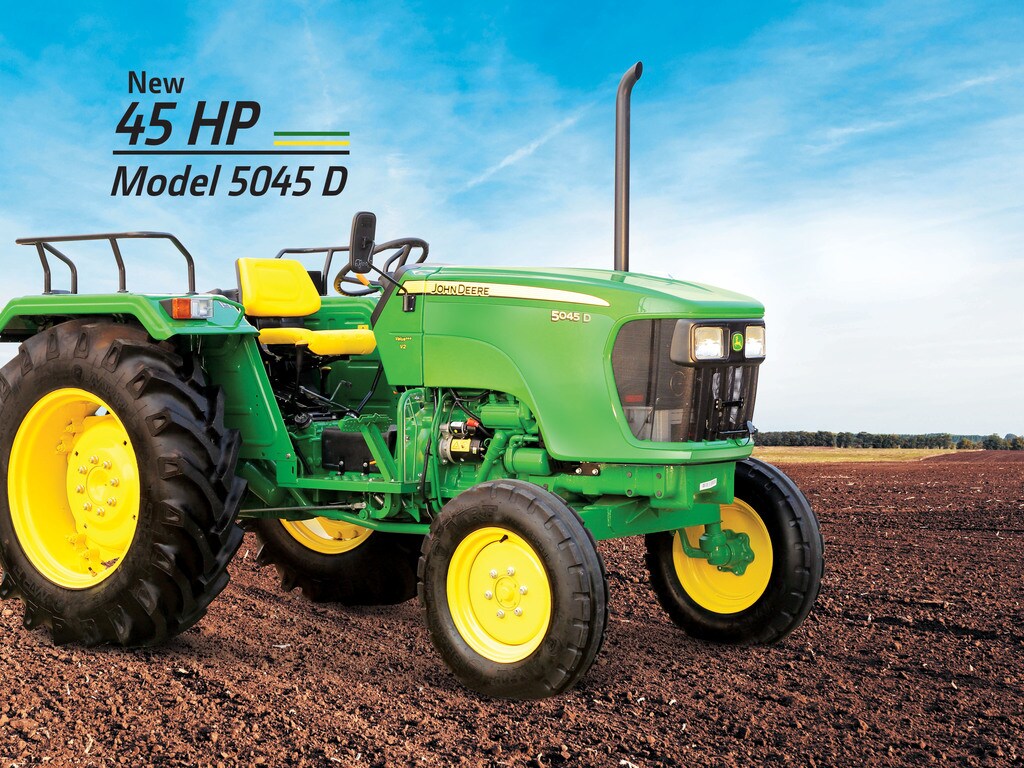

5045D5045D Tractor (45 engine HP at 2100 rated ERPM)
• Power Steering
• Oil Immersed Disc Brakes
• Dry Type Air Filter
• Oil Jet for Piston Cooling
• Top Shaft Lubrication
• Piston Jet Cooling
Features
Expand All
Collapse All

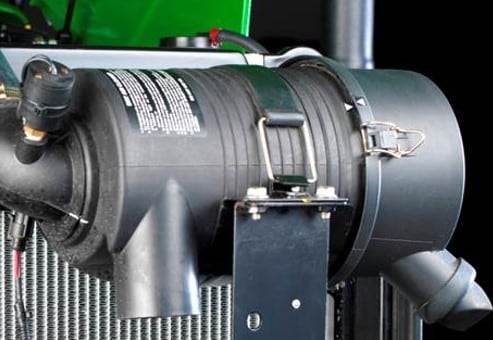

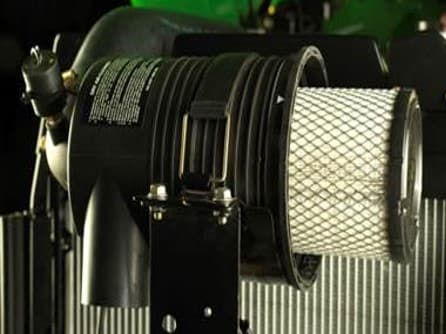

Dry Type Air Filter with Air Restriction Sensor
The John Deere 5D Series offers a dry-type air filter with dual filter elements ensures clean air to the engine.
High-level benefits of dry type air filter :
- Ensures 99.9% of cleaning efficiency
- Enhances the engine life
- An air restriction indicator alerts the operator when air filter is clogged
- Lower operating costs compared to oil bath air cleaner
- Easy to service compared to the oil bath air cleaner

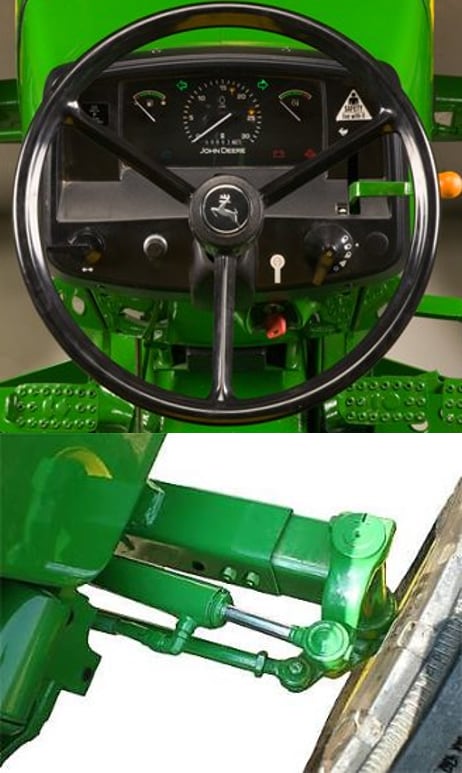

Power Steering
Hydrostatic power steering ensures smooth steering operation with fewer operating efforts.
High-level benefits of hydrostatic/power steering:
- Smooth steering without reverse jerk on steering wheel from steering system
- Low steering operating efforts
- Enhanced operator comfort
- Enhanced tractor maneuverability
- Power steering utilizes common oil, so no routine check is required and provides high durability
Power steering is a standard feature in all John Deere tractor

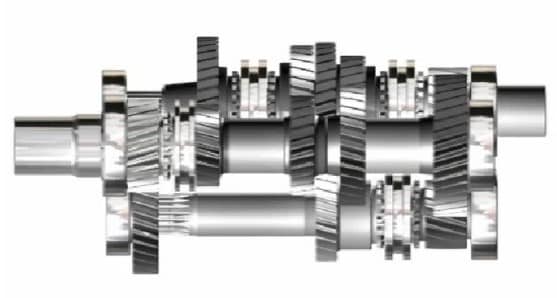

Collar Shift Gear Box
Collar shift gearbox ensures easy shifting of gears without any hassle. .
High-level benefits of Collar Shift Gearbox :
- Highly durable and efficient transmission
- Maximum power transferred for best performance
- Quiet operation
- Easy on-the-go gears shifting
- More life and Less maintenance
Side Shift Gear Lever
All the John Deere tractor comes with side shifting gears , which is ergonomically easy .
High level benefits of Side shift gear lever :
- Easy to move in and out of operating station
- Easy to reach out and operate all the levers
- More safe and ergonomically comfortable for operator .

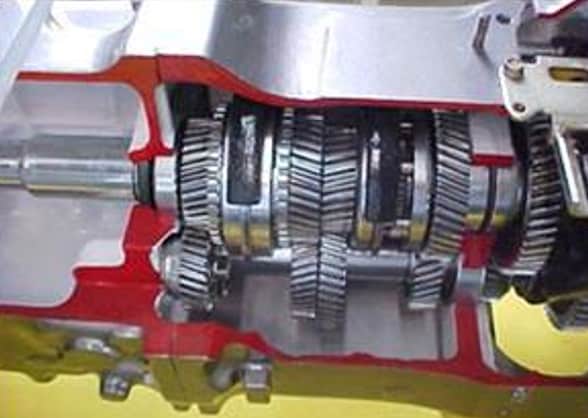

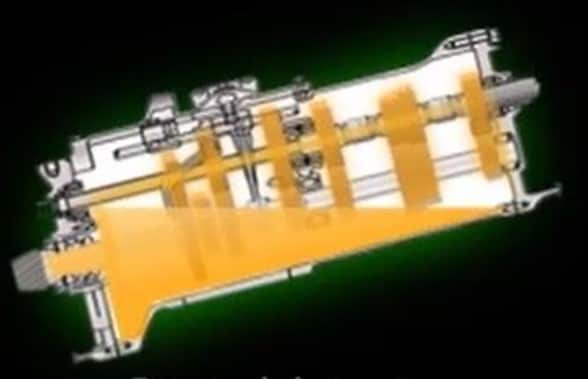

Top Shaft Lubrication
Top shaft lubrication forced lubrication Mechanism in transmission which ensures long life of transmission components.
High level benefits of Top shaft lubrication:
- Ensures lubrication to all parts of transmission
- Enhanced transmission performance
- Reduces transmission maintenance, frequent repairs and replacement
- High durability and low maintenance - Uptime
Oil Immersed Disc Brake
The John Deere Tractor has in board Oiled immersed disc brakes after planetary reduction. A higher brake disc contact area gives better braking efficiency and higher durability.
Operators can expect sure stops when the unexpected happens in the field, on the highway, or at home with mechanical wet-disc brakes.
The brake pedals can be locked together for braking action on both rear wheels when in transport, or they can be unlocked to make tighter turns in the field.
The brakes are oil cooled for maximum performance throughout the life of the tractor.
High level benefits of oil immersed disc brake :
- Wet-disc brake
- Brake disc and brake plates are immersed in the oil
- Effectively dissipate the heat generated during braking
- Higher brake efficiency
- Longer brake disc life
Planetary Gear Reduction
Inboard planetary final drives distribute rear axle loads over three points for reduced stress on individual gears and shafts. Operators can expect longer life with less service, which means maintenance time is replaced with profitable production time. Inboard design also permits a wide range of wheel tread adjustments so operators can accomplish more with one tractor by custom setting tire treads to meet the specific demands of a variety of tasks.
High level benefits of Planetary gear reduction:
- Compact in design, Noiseless operation
- Even load distribution
- Less wear and tear
- Longer life with less service - more productivity
High Engine Torque
High level benefits of High engine torque :
- Powerful John Deere engine pulls loads in challenging conditions
- Avoids engine stalling in heavy load applications
- No frequent gear change is required
- Better fuel economy

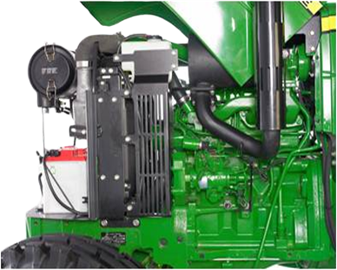

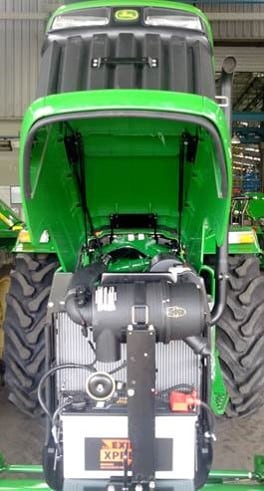

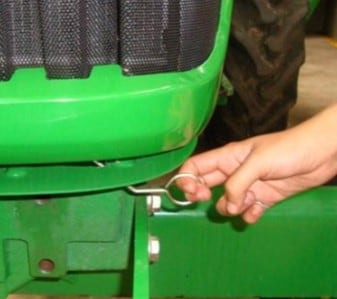

Single Piece Hood
Single piece hood provides excellent visibility , better accessibility of engine parts , serviceability and engine parts
High level benefits of Single piece hood :
- New international styling
- Easy hood opening
- Gas strut mechanism – Less effort
- Head lamp bezel and internal sealing - Avoid trash entry from headlamp front grill
Specifications
| Specifications | ||||
|---|---|---|---|---|
| John Deere 5045D 5045D Tractor (45 engine HP at 2100 rated ERPM) |
Engine
| Type | 45 HP, 2100 RPM, 3 Cylinders, Coolant cooled with overflow reservoir, Naturally Aspirated | |||
|---|---|---|---|---|
| Air - Filter | Dry type, Dual element |
Transmission
| Clutch | Single / Dual | |||
|---|---|---|---|---|
| Gear Box | 8 Forward + 4 Reverse, Collarshift |
Hydraulics
| Lifting Capacity | Maximum lifting capacity 1600kgf at lower link ends | |||
|---|---|---|---|---|
| 3 Point Linkage | Category II Automatic Depth & Draft Control |
Steering
| Type | Power |
|---|
Power Take Off
| Type | Independent, 6 Splines | |||
|---|---|---|---|---|
| Standard | 540 @ 2100 ERPM | |||
| Economy | 540 @ 1600 ERPM |
Wheels and Tyres
| Front | 13.6 X 28, 12 PR 14.9 X 28, 12 PR ( optional) 14.9X28 , 12 PR( HLD) ( Optional) | |||
|---|---|---|---|---|
| Rear | 13.6 X 28, 12 PR |
Dimensions and Weight
| Total Weight | 1810 kg | |||
|---|---|---|---|---|
| Wheel Base | 1970 mm | |||
| Overall Length | 3410 mm | |||
| Overall Width | 1810 mm | |||
| Ground Clearance | 415 mm | |||
| Turning Radius with Brakes | 2900 mm |
