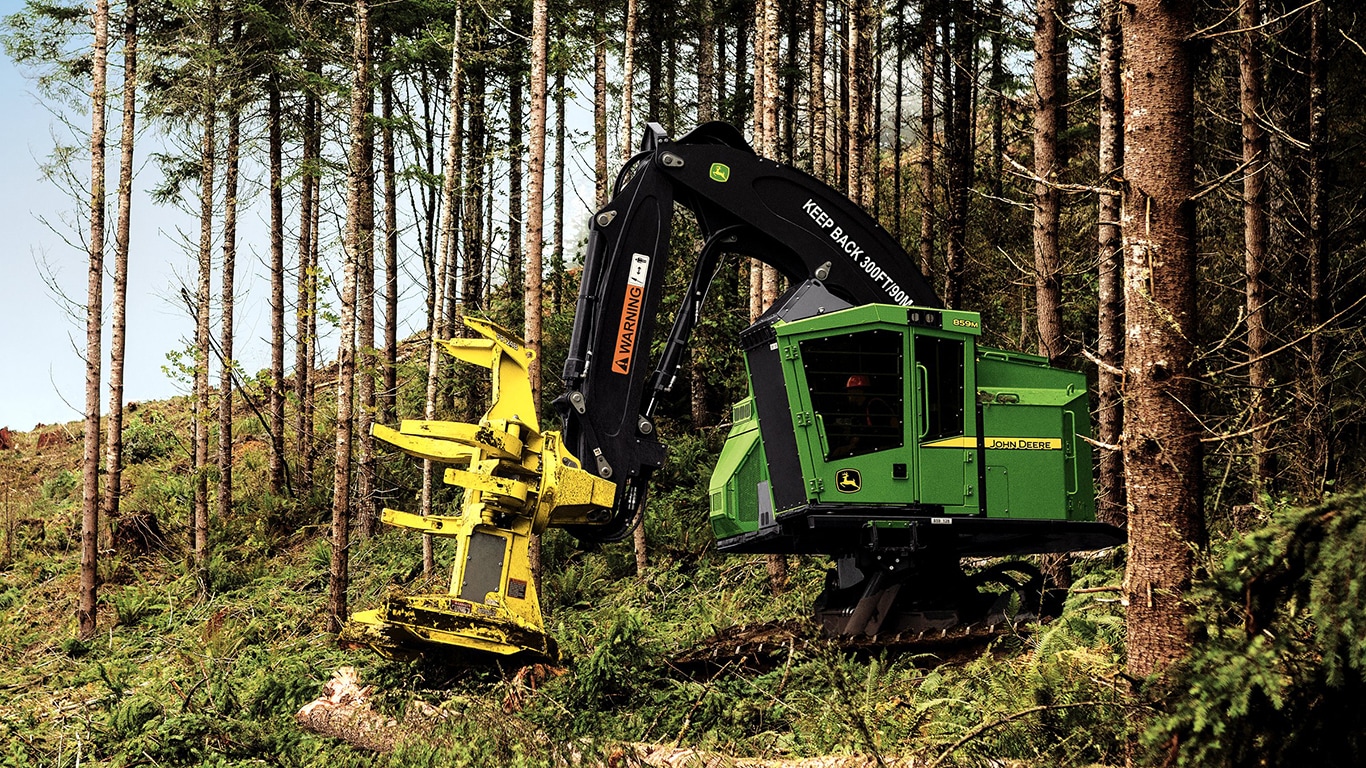

859MTracked Feller Buncher
- Peak Power 224 kW (300 hp) @ 1,900 rpm
- Max. Boom Reach 8.49 m
- Tractive Effort 373 kN
859M
Features
Features
Expand All
Collapse All
Increased Engine Power
When equipped with the Dedicated Travel System feature, a 330-hp engine option can be selected to further improve the performance and efficiency of the Travel System and all other machine functions as well.
More Boom Control
800M-Series come standard equipped with Smooth Boom Control (SBC), allowing machine movements to be controlled more effectively, delivering a smoother experience for the operator and less wear and tear on the machine over time.
Improved Stability
Longer, wider undercarriage maximizes stability no matter the terrain. If you’re working in really big timber or on hills, optional high-torque swing provides increased power, to boost productivity. Strong tractive effort generously increases capability for negotiating difficult or steep terrain, deep snow, and swamps.
Standard Rapid Cycle System (RCS)
RCS can be tailored to individual skill levels and specific harvesting conditions. Multiple RCS settings can be saved according to individual operator preferences. Novices may prefer a slower, more methodical pace, while highly skilled pros may want faster response.
Increased visibility
Floor-to-ceiling front window, large side windows, skylight, and optional floor window (standard on levelers) significantly expand the view of the harvesting area and the work at hand.
Operate in Comfort
- New seat that’s more ergonomic than previous models features a dual-density seat pan and contour as well as updated armrest and suspension to improve the overall comfort of operators of all sizes. Optional heated-ventilated seat (HVS) maximizes comfort in all conditions.
- An updated premium Bluetooth radio option with XM Satellite Radio is ready from the factory.
Specification
Specification
Expand AllCollapse All
859M Tracked Feller Buncher
DRIVELINE |
|
| Engine Manufacturer | John Deere |
| Engine Model | PowerTech PSS 9.0L |
| Rated Speed, rpm | 2000 |
| Engine Output, kW (hp) | 213 (286) |
| Engine Output - Net, kW (hp) | 213 (286) |
| Engine Torque, Nm | 1270 |
| Carrier Rollers - Each Side | 2 |
| Track Rollers - Each Side | 9 |
| Track Shoe Width, mm | 600 |
DIMENSIONS |
|
| Base Carrier Length, m | 4,9 |
| Height Over Cab, mm | 3920 |
| Overall Width, mm | 3300 |
| Tail Overhang - Over Side, mm | 290 |
| Track Length On Ground, mm | 3830 |
| Tailswing Radius, mm | 1940 |
| Ground Clearance, mm | 746 |
| Superstructure Width, mm | 3150 |
| Track Gauge, mm | 2720 |
| Cab Leveling tilt (Forward), Degrees | 26 |
| Cab Leveling tilt (Rear), Degrees | 7 |
| Cab Leveling tilt (Side), ± Degrees | 14 |
CAPACITIES |
|
| Fuel Tank, ltr | 870 |
| Hydraulic Tank, ltr | 122 |
| Alternator Output, Amp | 200 |
PERFORMANCE |
|
| Travel Speed, kph | 3,7 |
| Tractive Force, kN | 373 |
| Lift Capacity - Maximum Reach, kg | 5540 |
| Reference Harvesting Head | FS22B |
| Felling Diameter, mm | 559 |
| Reference Head Saw Type | Disc |
| Reference Head Type | Felling |
| Cutting Radius - Maximum, mm | 8490 |
| Cutting Radius - Minimum, mm | 3830 |
| Cutting Swath Horizontal, mm | 4660 |
| System Voltage, V | 24 |
| Pump Type | Variable Displacement Axial Piston |
| Pump Flow, lt/min | 494 |
WEIGHTS |
|
| Operating Weight, kg | 36060 |
Smooth Boom Control
Smooth Boom Control
Further enhancing the machine operation in demanding forestry applications, John Deere adds its Smooth Boom Control (SBC) technology to its M-Series Tracked Feller Bunchers and MH-Series Tracked Harvesters.
TimberMatic Maps and TimberManager
TimberMatic Maps and TimberManager
This map-based production-planning and -tracking system allows contractors and operators alike to share real time production and location information – taking the guesswork out of effective decision-making.
Resources
Complete Support
Product modules and features has been compiled for worldwide circulation with general information, pictures, and descriptions of features not available in all countries. In some countries, products and accessories may require modifications or additions to ensure compliance with local regulations. Contact your local John Deere dealer for details.
